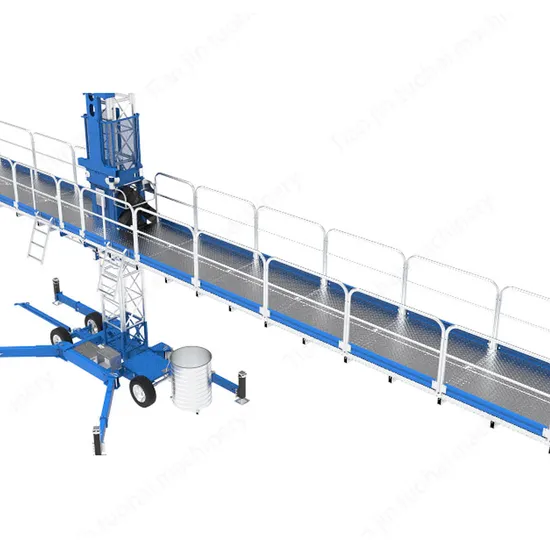

Anti-Slip Mast Climbing Work Platform
Basic Info.
Model NO.
HTP8000
Application
Working Platform
Lift Mechanism
Rack&Pinion
Carrying Capacity
4500kg
Moves
Vehicular
Driven Type
Rack&Pinion
Running Mode
Moving
Certification
CE
Platform Length
4.1m
Platform Width
1.6m
Payload
4500kg
Standard
CE, En1495,ISO16369
Speed
0-7.2m/Min
Rack Module
8 mm
Mast Section
700 *700*1257mm
Motor Rating Drive Unit
2*7.5kw
Max. Mast Height
150m
Freestanding Mast
15m
Transport Package
Nude Packing
Specification
0
Trademark
HITOP
Origin
China
HS Code
84281090
Production Capacity
30 Sets/Month
Product Description
| TIANJIN TUOHAI MACHINERY TECHNOLOGY CO., LTD.(HITOP Machinery) Registered in 2020, is a manufacturer and trading company in the business of various types of vertical lifting machinery for construction, including Tower Crane, Construction Hoist,BMU(Façade Access System) and Elevator, covering the whole life span of the building from its preliminary stage of construction to service time.HITOP Machinery is located in Zhongtang Town, Binhai New District,Tianjin. The company has strong technical research and development strength, and the R&D personnel all have working experience in the Central Government Companies & Institute, are familiar with the European standards and Chinese National standards of the BMU, and have rich design and practical experience in the BMU. At present. Now we have 2 professor-level senior engineer, 2 senior engineer, and 6 engineers. We regard customer needs as our direction of progress, continuous innovation as our driving force, quality and brand as our core competitiveness for sustainable development, and use the concept of long-termism to run through the entire process of our company's R&D, manufacturing and market development process, and strive to become the invisible champion in the vertical lift machinery industry. |
Main Products
Product Parameters
MCWPs using 650x650x1508 mast section are available.
| Parameters | HTP8000A-1SD | HTP8000A-1TD | HTP8000A-2SD | HTP8000A-2TD |
| Platform length (min/max) | 4.1 m/16.9 m | 14.2 m/46.2m | 4.1m/16.9 m | 14.2 m/46.2 m |
| Platform width (standard/max.extension) | 1.6 m | 1.6 m | 1.6 m | 1.6 m |
| Payload (at min./max.platform length) | 4500 kg / 2800 kg | 8000 kg / 1000 kg | 3500 kg / 2000 kg | 8000 kg / 1000 kg |
| Speed (50/60 Hz) | 0~7.2 m/min | 0~7.2 m/min | 0~7.2 m/min | 0~7.2m/min |
| Mast | 700 *700*1257mm | 700 *700*257mm | 700 *700*257mm | 700 *700*257mm |
| Rack module | 8 mm | 8 mm | 8 mm | 8 mm |
| Motor rating drive unit | 2x5.5 kW | 2x2x5.5 kW | 2x2x5.5 kW | 2x2x2x5.5 kW |
| Max. mast height, mast tie | 150 m | 150 m | 150 m | 150 m |
| Max. mast height, | 17.5 m | 17.5 m | 12.5 m | 12.5 m |
| freestanding mast | 15 m | 15 m | 9 m | 9 m |
| Max. mast tie spacing | 12 m | - | - | - |
| Chassis drive unit speed | 0~1.8 m/0~2.5 m | 0~1.8 m/ 0~2.5m | 0~1.8 m/0~2.5 m | 0~1.8 m/0~2.5m |
| Power Supply | 400 V/50-60 Hz | 400 V/ 50-60 Hz | 400 V/ 50-60 Hz | 400 V/ 50-60 Hz |
ACCESSORIES
Our Advantages
Certifications
Photos with Clients
Transport
Packaging & Shipping
| FAQ: Q1: Are you a factory or trading company? A1: We are both trading and manufacturer. Q2: Can you make customized design / size/ packaging? A2: Yes, of course, we have our own factory, we have engineers in this field.We can make products accol to customer's requirement such as capacity, materials, logo, packaging. Q3: How about your quality control? A3: We have passed the ISO9001, CE, SGS certificates. We have own QC to check mass productions in the factory. 100% quality check. and durable testing before each of shipment. Q4: What is the MOQ? A4: No MOQ requirements. Q5: What are your terms of packing? A5: Big parts wrapped with plastic films and fixed in container.Small parts in paper cartons or wooden bo:For delivery in LCL,all will be packed in wooden crates. Q6: What is your Payment methods? A6: T/T,Palpal, Westen Union,L/C. Q7 :How long is your production time? A7: Generally, After order 15 to 30 days. Q8: Can you produce according to the samples? A8: Yes, we can produce according to your samples. Q9: Can you produce with our logo? A9: We can provide OEM services, making your logo on the products. Q10:How do you make our business long-term and a good relationship? A10:We respect every customer as our friend and we sincerely do business and make friends with them matter. |
