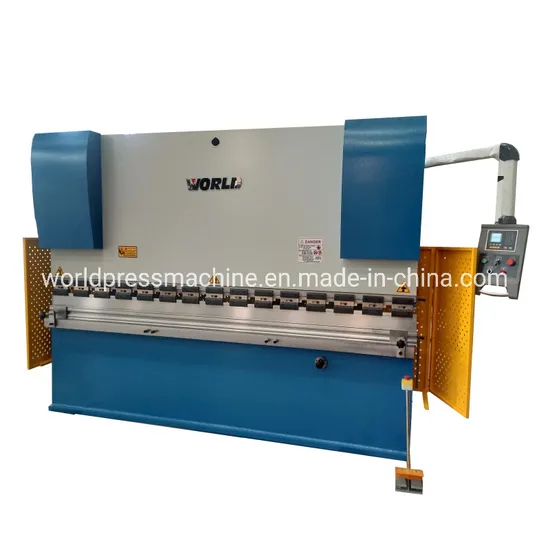

3 Meters Nc Press Brake Machine with Hydraulic Power

Product Description

Hydraulic sheet metal bending press brake with NC control system
Features:
1) A fully welded steel construction with full strength and rigidity.
2) Hydraulic down-stroke construction.
3) Synchronizing mechanism of the RAM adopting torque-tube and mechanical stop unit, stable and reliable.
4) Deflection-compensating mechanism of wedge construction.
5) Power fast adjustment, manual fine adjustment and counter-showing for the RAM stroke.
6) Front-controlled backgauge by power fast-adjustment & manual fine-adjustment with counter display.
Details:
Our products range:
- J23 and JH23 inclinable eccentric press, capacity from 6.3ton to 125ton.
- JH21 c frame single crank press, capacity from 25ton to 400ton.
- JH31 semi-straight side single crank press, capacity from 110ton to 400ton.
- JW31 H frame single crank press, capacity from 110ton to 400ton.
- JH25 c frame double crank press, capacity from 110ton to 315ton.
- JW36 H frame double crank press, capacity from 110ton to 500ton.
- JX36 close type big table press with double crank, capacity from 400ton to 1000ton.
- JS36 close type gear press, capacity from 300ton to 1250ton.
- JS31 close type gear press, capacity from 160ton to 1000ton.
- NCF roller feeder
- 3 in 1 straightener feeder with decoiler
- hydraulic shearing machine
- hydraulic press brake and cnc press brake
- hydraulic press machine
Specifications

Items	unit	WC67Y-40/2500	WC67Y-63/2500	WC67Y-63/3200
Nominal pressure	kN	400	630	630
Length of table	mm	2500	2500	3200
Distance between uprights	mm	1900	2000	2300
Throat depth	mm	200	250	250
Ram stroke	mm	110	120	120
Daylight	mm	370	380	380
Approach speed	mm/s	120	110	100
Bend speed	mm/s	10	10	9
Return speed	mm/s	100	90	90
Main motor	kW	5.5	5.5	5.5
Length	mm	2600	2600	3400
Width	mm	1350	1380	1400
Height	mm	2100	2300	2400
Items	unit	WC67Y-80/2500	WC67Y-80/3200	WC67Y-80/4000
Nominal pressure	kN	800	800	800
Length of table	mm	2500	3200	4000
Distance between uprights	mm	1900	2300	1900
Throat depth	mm	320	320	320
Ram stroke	mm	120	120	120
Daylight	mm	380	380	380
Approach speed	mm/s	120	110	100
Bend speed	mm/s	10	10	9
Return speed	mm/s	100	100	90
Main motor	kW	7.5	7.5	7.5
Length	mm	2600	3400	4100
Width	mm	1400	1400	1400
Height	mm	2300	2300	2300

Items	unit	WC67Y-100/2500	WC67Y-100/3200	WC67Y-100/4000
Nominal pressure	kN	1000	1000	1000
Length of table	mm	2500	3200	4000
Distance between uprights	mm	1900	2400	3000
Throat depth	mm	300	320	320
Ram stroke	mm	160	150	120
Daylight	mm	380	380	380
Approach speed	mm/s	120	110	100
Bend speed	mm/s	10	10	9
Return speed	mm/s	100	100	90
Main motor	kW	7.5	7.5	7.5
Length	mm	2600	3300	4000
Width	mm	1600	1800	1800
Height	mm	2500	2500	2300
