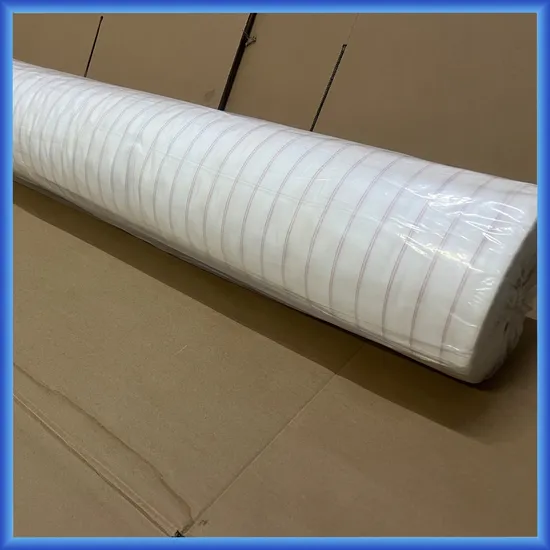

85G/M2 Polyamide 66 Demold Cloth for Oven Curing

85G/M2 Polyamide 66 Demold Cloth for Oven Curing

US$0.85
1,000-4,999 Square Meters
US$0.83
5,000-19,999 Square Meters
US$0.80
20,000+ Square Meters

Basic Info.

Model NO.
XGPA66-85-1.8
Width
1800mm
Weight
85g
Type
Nylon Fabric
Technics
Woven
Pattern
Treated
Style
Plain
Fiber Length
Long Fiber
Breaking Tensile Force
>900n/5cm
Thichness
0.15mm
Sight Thread Color
Red
Maximum Themperature
230c
Transport Package
30.6kg/Roll
Specification
184*25*25cm
Trademark
XIANGU
Origin
China
HS Code
5407430000
Production Capacity
8000000000m2/Year

Product Description

85g/m2 Polyamide 66 Demold Cloth for Oven Curing is a kind of plain woven fabric using tiny high strength polyamide 66 filament,through complex manufacturing processes from fiber drawing,cloth weaving,surface treatment,cutting,re-windering.Generally it is used for pumping vacuum infusion of resin composite material parts(fiberglass composite material parts,carbon fiber composite material parts and para armid composite material parts,even their hybrid parts),after curing,the demolding is easy and the surface of thermo-setting plastic parts is clean and tidy,better for the next process,like polishing,painting,etc.
SPECIFICATIONS:
MODEL: XGPA66-85-1.8
DENSITY: 85g/m2
WEAVE: plain
FIBER TYPE: PA66
BREAKING TENSILE FORCE: >900N/5cm
FIBER DISTRITUTION: 19*15pc/cm
THICHNESS: 0.15mm
SIGHT THREAD COLOR: red
SIGHT THREAD DISTANCE: 30mm
MAXIMUM THEMPERATURE: 230ºC
OIL CONTENT: <0.5%
ROLL WIDTH: 180cm
ROLL LENGTH: 200m

ADVANTAGES:
1.high strength:breaking tensile strength is high,not easy peering,
2.high temperature resistance:withstand temperatures about 230 ºC,
3.stablity:anti-pulling and avoid distortion.
4.smooth surface:demolding with nice surface composite curing parts,
5. long width:width can reach 1800mm,easier for large curing parts.
APPLICATIONS:
1.prepreg:fiberglass fabric prereg,carbon fiber fabric prepreg,balsalt fiber fabric prepreg,para aramid fiber fabric prepreg,
2.wet lay up:room temperature curing parts demolding ply.
3.oven curing:prefabricated part oven curing,autoclave curing,
STORAGE:
The peel ply fabric should be keep dry in their original bags and stored in a suitable place,preferably at room temperature with 35-65% relative humidity.Avoid the sun, rain and fire.
PACKAING:
PRODUCT DETAILED IMAGES:
