ISO-Certified High Precision Lab-Use CT-250s/CT-250V Durable Automatic Sample Cutter Model Metallographic Specimen Metallography Diamond Cutting Wheel Machine

Product Description

Model	CT-250S	CT-250V
Max. Dia	Φ250mm
Cutting Capacity	Φ80mm
Feeding Mode	Manual
Dimpowerension of table	210x230mm
Power	2.2KW
Power supply	3x380V/50Hz Standard (220,440,480V/60Hz Optional)
Wheel speed	2800rpm(50Hz)	1000-3500rpm(50/60Hz)
Weight	100kg	105kg
Dimension WxDxH	664x684x621mm (Close) 664x898x829mm (Open)
Volume of water tank	60L
Dimension of water tank	620x420x520mm

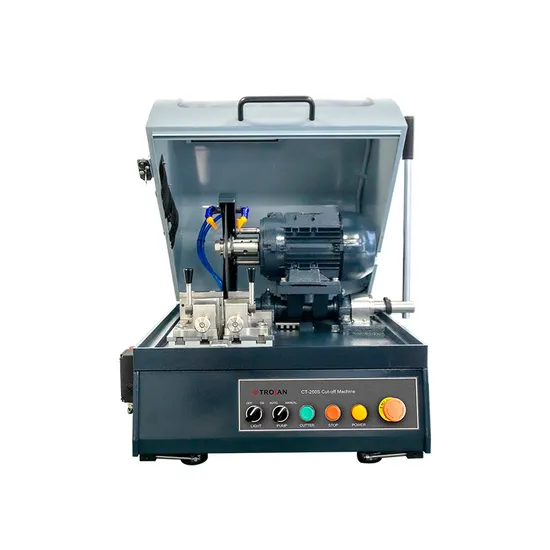

CT-250S/CT-250V is a manual cut-off machine, designed according to the principle of safety and environmental protection, equipped with safety lock and emergency stop button to ensure safety. The machine adopts WEG high-torque waterproof motor, ergonomic cutting handle, and simple control panel. Equipped with a 250mm/10" diameter cut-off blade, it is suitable for rapid cutting of various metal and non-metallic materials. It is one of the necessary equipment for sample preparation in the laboratories of factories, R&D Institute and college. Manually chop cutting,easy operation; Omron electronic switch accessories,safe and reliable; Extra large observation window with high brightness lighting system for easy observation of cutting process; Super cooling system ensures the workpiece won't burning while cutting; Equipped with independent water tank and filter, easy to collect the swarf and prolong the service life of the cutting machine; Rugged and reliable with low noise.

Item	CT-250 Metallographic specimen cutting machine
Power Supply	220V/380V/440V/480V, 50/60HZ
Speed	2800 r/min
Max Cutting Section	Φ80mm
Net Weight	130 KG
Cutting Power	2.2 KW
Cutting Material	Ferrous metal, nonferrous metal
	Casting, heat treatment workpieces, forgings
	Other metal and nonmetallic materials

Product Feature1.CT-250 desktop metallographic cutting machine has a novel and creative design, its performance can compare with the international similar product(Like Buehler)
2.Use motor, low voltage control, safe and reliable
3.Electronic brake technology, motor can be stopped immediately, safe enough.
4.T-type worktable, double quick clamping fixture, which is beneficial to clamping all kinds of specimen.
5.Two different cutting modes: automatic and manual cutting, no burning swing cutting mode, 7 level cutting speed setting.
6.Oversized closed cutting operation room.
7.Simple and quick operation, high production efficiency.
More Related Products
Certifications
Recommend for you
Company Profile
Scope of application
Exhibition Display
Packaging & Shipping
FAQ
Q: I didn't use this kind of machine before, is it easy for me to operate?
A: We will send you how-to tutorials and guide video in English which can teach you how to operate the machine. We can also assist
you by E-mail, phone call, online group chat and any other ways if you still have trouble handling it.
Q: If the machine has problem in my place, how could I do?
A: We could send free parts to you in warranty period if machines have any problem under normal use.
Q: What is the price and payment terms?
A: EXW, CIF, FOB we all can accept payment: TT/Paypal /LC/Western Union.etc
