Power Winch Jsdb-10 Double Speed Electric Winch
| US$4,500.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JSDB-10
Speed
Slow
Carrying Capacity
Middle-Level
Tonnage
2.34t
Reel Number
1
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE
Standard
National Standards
Model
Jsdb-10
Wire Rope Static Tension Kn
Average 18.3
Wire Rope Speed M/S
Average 1.075
Wire Rope Length M
120
Wire Rope Size Dia.
20
Structure
6X19
Nominal Tensile Strengthkn
1670
Motor
Ybk2-200L1-6
Motor Power
18.5kw
Voltage V
660/1140
Weight Kg
2340
Transport Package
Wooden Case or Carton Case
Specification
2540x785x800mm
Trademark
China Coal
Origin
Jining City, Shandong Province, China
Production Capacity
1000 Sets Per Month
Product Description
Introduction Of Power Winch JSDB-10 Double Speed Electric WinchJSDB Series double-speed winch is an explosion-proof winch, which is mainly used for the shifting, dumping and handling of the mining materials under the coal mine. The mine raises and lowers the heavy objects on the working surface or the roadway with a dip angle of less than 30 degrees. The double-speed winch has two speeds, fast and slow, which can be used to change speed and traction according to the needs of the site.zmwm10
Parameter Of Power Winch JSDB-10 Double Speed Electric Winch
| Model | JSDB-10 | JSDB-12 | JSDB-13 | JSDB-15 | JSDB-16 | JSDB-19 | JSDB-25 | JSDB-30 | |||||||||
| Fast | Slow | Fast | Slow | Fast | Slow | Fast | Slow | Fast | Slow | Fast | Slow | Fast | Slow | Fast | Slow | ||
| Wire rope static tension KN | Outer layer Max. | 14.5 | 100 | 15 | 120 | 15 | 130 | 18 | 150 | 25.4 | 160 | 27.8 | 190 | 30 | 250 | 38 | 300 |
| Inner layer Max. | 22.1 | 140 | 22.1 | 160 | 29.1 | 200 | 30 | 250 | 36.6 | 280 | 43.4 | 320 | 56 | 390 | 56 | 470 | |
| Average | 18.3 | 120 | 18.3 | 140 | 22.05 | 165 | 23 | 200 | 30.5 | 220 | 35.6 | 255 | 43 | 320 | 43 | 380 | |
| Wire Rope speed m/s | Max. | 1.3 | 0.2 | 1.3 | 0.2 | 1.3 | 0.2 | 1.39 | 0.2 | 1.39 | 0.2 | 1.6 | 0.2 | 1.51 | 0.2 | 1.66 | 0.2 |
| Outer layer | |||||||||||||||||
| Average | 1.075 | 0.18 | 1.075 | 0.18 | 1.11 | 0.18 | 1.235 | 0.17 | 1.235 | 0.17 | 1.31 | 0.18 | 4.145 | 0.16 | 1.145 | 0.174 | |
| Drum Size | Wire Rope Length m | 120 | 180 | 180 | 300 | 300 | 500 | 500 | 800 | ||||||||
| Drum Dia.*Width | ф430x430 | ф430x443 | ф435x530 | ф470x530 | ф510x530 | ф545x570 | ф545x760 | ф650x800 | |||||||||
| Wire Rope size | Dia. | 20 | 22 | 24 | 28 | 28 | 30 | 30 | 30 | ||||||||
| Structure | 6x19 | ||||||||||||||||
| Nominal tensile strengthkn | 1670 | ||||||||||||||||
| Motor | Type | YBK2-200L1-6 | YBK2-200L2-6 | YBK2-200L2-6 | YBK2-200L2-6 | YBK2-250M-6 | YBK2-280S-6 | YBK2-280M-6 | YBK3-315S-6 | ||||||||
| Power KW | 18.5 | 18.5 | 22 | 22 | 37 | 45 | 55 | 75 | |||||||||
| Revolution rpm | 970 | 970 | 970 | 980 | 980 | 980 | 980 | 980 | |||||||||
| Voltage V | 660/1140 | 660/1140 | 660/1140 | 660/1140 | 660/1140 | 660/1140 | 660/1140 | 660/1140 | |||||||||
| Dimension | L*W*H | 2540x785x800 | 2540x785x800 | 3182x968x987 | 3260x1060x1060 | 3260x1060x1060 | 3825x1214x1470 | 3875x1274x1187 | 4750x1516x1512 | ||||||||
| MM | |||||||||||||||||
| Weight | 2340 | 2600 | 3900 | 4400 | 5000 | 5480 | 7800 | 8200 | |||||||||
| (with motor)(kg) | |||||||||||||||||

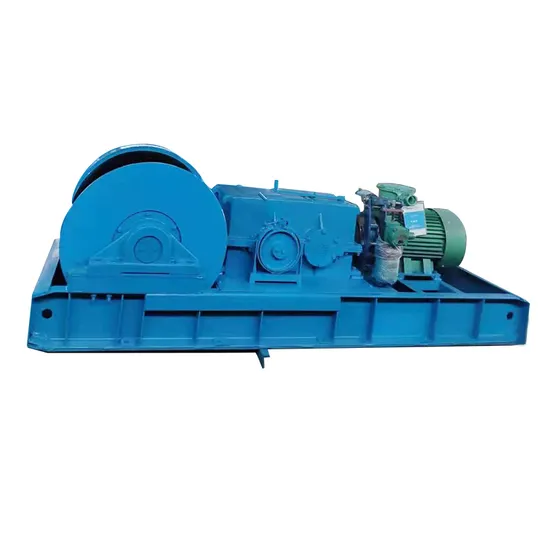

Photos Of Power Winch JSDB-10 Double Speed Electric Winch
