Hot Plate Rubber Product Molding Machine

Product Description

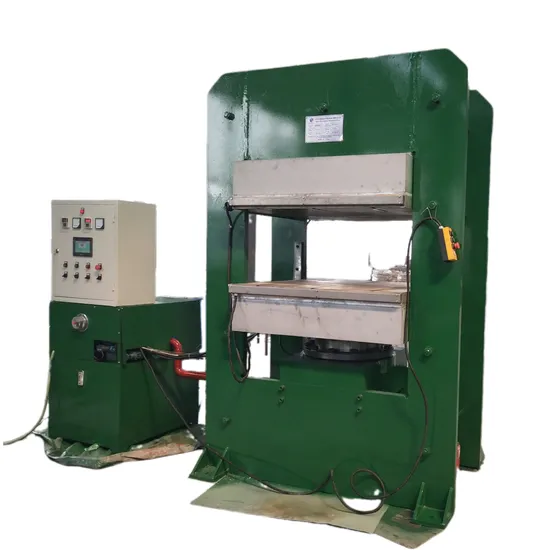

Hot plate rubber product molding machine
The Performance Characterstics
Using PC or artificial control,reliable performance,high degree of automation,avoid accidents caused by wrong operation.
Process lock,the operator cannot be changed without authorization,to guarantee the auqlity of products to the greatest extent.
Is set to automatically open mould in advance,automatic vent,automatic filling pressure,automatically timing,automatically fall mold,and other functions.
The electric heating type adopts digital display(pointer) temperature control,temperature control and display the heating plate.
Manual,automatic,electric three operating modes to choose from.
Product Parameters

Type	315T	250T	200T	160T	100T	50T
Nominal clamping mould force (KN)	3150	2500	2000	1600	1000	500
Max working oil pressure	16	16	16	16	16	16
Hot plate size	1200*1200mm	1100*1100mm	1000*1000mm	850*850mm	600*600mm	500*500mm
Hot plate space	150	150	150	125	125	125
Max plunger stroke	350	350	600	500	500	500
Working layers	2	2	4	4	2/4	2/4
Heating mode	steam/electric heating	steam/electric heating	steam/electric heating	steam/electric heating	steam/electric heating	steam/electric heating
Hot plate pressure per unit area	2.2	2.1	2.0	2.5	2.8	3.12
The motor power	7.5kw	5.5kw	4kw	3kw	3kw	2.2kw
About weight	9500kg	8300kg	7900kg	6800kg	1900kg	1300kg
Note	plate frame with guide rail	plate frame with guide rail	plate frame with guide rail	column with guide rail	column with guide rail	column with guide rail
Dimension	1685*1320*2550mm	1780*1150*2434mm	1800*1200*2650mm	3000*1600*1523mm	2070*1050*2530mm	1470*64081700mm

Detailed Photos
Packaging & Shipping Packing method: Remove the motor and rotary joint, and pack the main body in an integrated manner. A small cabinet.
Certifications
Company Profile Qingdao Boria Machinery Manufacturing Co., Ltd is recapitalized combination from Qingdao Bojia Machinery Manufacturing Co., Ltd in 2016. And Qingdao Bojia Machinery Manufacturing Co., Ltd.
changed officially its name from a state-owned machinery company in October 2007, is one professional machinery manufacturer. Our company have one good and high quality design and manufacturing technology development group, often communicate with the customers and technology authority departments of rubber industry, constantly to improve and update our products which can meet requirements of the customers.Our company guarantee to provide you excellent pre-marketsale and after-sale service, timely technology information consulting, accessories and consumable parts supply etc, also can design & manufacture various non-standard products according to users' requirements.
Our main products are: Vulcanizing Press Series; Batch Off Cooling Machine Series;Open Mixing Mill Series; Rubber Cutting Machine Series; Rubber Slitting Machine Series; Longitudinal Cutting Machine Series; Cushion Cloth Renovating Machine Series; Conveying Belt Molding Machine Series; Conveyor Belt Machine Series; Other Rubber Machines; Design and manufacturing of Automatic Production Line.

Our Advantages Qingdao Boria Machinery is a professional machinery manufacturing enterprises, the company has all kinds of CNC precision machining equipment, processing power is strong; with independent professional rubber machinery design R & D team, and with China's long history of the most professional four One of the major rubber industry institutions, "Qingdao Institute of Chemical Technology" long-term rubber technology, formula, machinery and equipment, and other aspects of technology, practice and cooperation; Qingdao Boca machinery can be based on customer needs and customer technical parameters for equipment design and Ratio. At the same time the company focused on the automation of equipment research and development, manufacturing lines can be unmanned design, improve the user's labor productivity, reduce the labor intensity of workers, and stabilize product quality.
FAQ
1.Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.

2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.

3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.

5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.

6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport.
We will pick up you at the airport.
If you have more information to learn, please send us a private message and we will provide you with the highest quality service.
