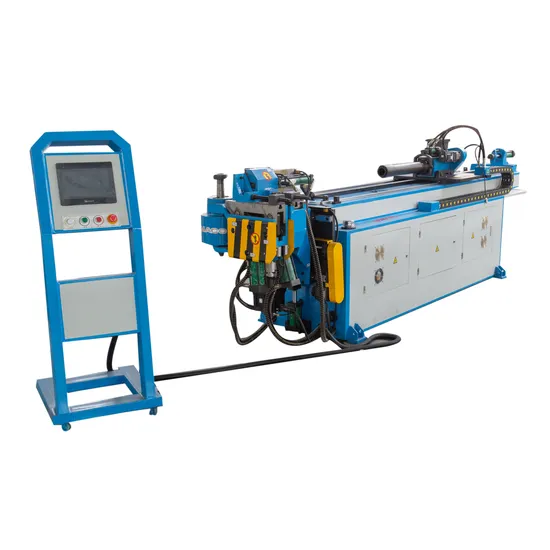

Full-Automatic 3 Axis Pipe Bending Machine Price 3D Full Automatic Pipe/Tube Bender GM-Sb-18CNC

Product Description

GM-18CNC single-die automatic CNC pipe for the use of advanced industrial control and touch-sensitive computer interface, which integrates color, you can easily produce the required precision bending parts, because it provides automatic bend your machine with the most reliable operating functions, will you introduce modern high efficiency of the factory advanced integrity of the pipe technology, we will be the best quality machinery, precision, speed, durability, security and overall service to meet your needs.
1. Construction Machine
Body by welding, mechanical parts assembly, import hydraulic system, electronic control of imports of fabric to complete.
2. Design Principle
European plane bend light machine reliability, with Asian features similar combination of machinery.
Menu operation, the bending angle settings, corner of feed are servo control; Bend, clamping, pulling, for mold, feeding trays, plate for the hydraulic control;
3. Major performance
Using industrial touch screen, in English mode menu is simple, with high precision, fast, multifunctional and high degree of automation
Name Unit GM-18CNC
Max. Bending Capacity mm 18*2
Bending Radius Region mm 20-150
The distance between two R mm 30
Bending Angle Region ° 0- 190
Max. Through Effective Distance mm 1200
Bending Precision ° ± 0.10
Bending Speed deg/sec 240
Feeding Precision mm ± 0.10
Feeding Speed mm/sec 2000
Turn Pipe Precision ° ± 0.10
Turn Pipe Speed deg/sec 280
Motor Power of Oil Pump System KW 2.2
Max. Pressure Kgh/cm\2 160
General Length*Width*Height mm 3000*1000*1500
General Weight T 1.2
Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens( Beide)or Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Cylinder	Shanghai Qifan
Oil tube	Zhejiang
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Servo Motor	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Taiwan Mingwei
