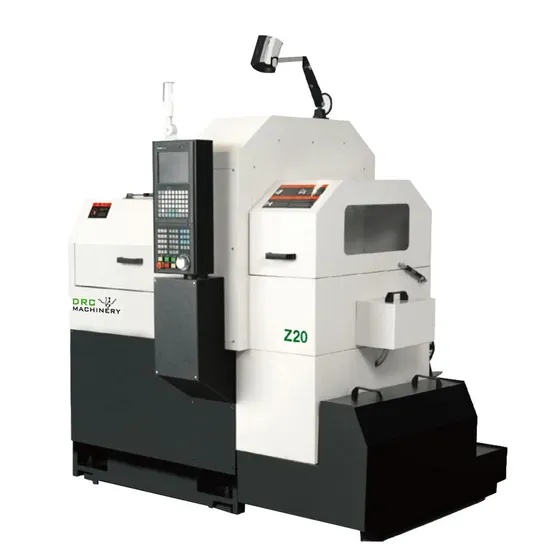

High Quality Swiss Type CNC Lathe Machine Ck1120 Sliding Head CNC Lathe

Product Description

High quality swiss type cnc lathe machine CK1120 sliding head cnc lathe 5 axis Swiss Machine CK1120 Have Sub Spindle Double Spindle Swiss Type Cnc Lathe Small Teaching Automatic Lathe
Machine description and use CK1120 Spindle Movable Type CNC Lathes have features of high precision, high efficiency, and reasonable structure. The machine is equipped with three-axis linear motion guide that have long working life and high precision, and driven by high-end servo motor. The linear multiple cutter makes machine have fast tool changing speed, and functional CNC system make it easy to control. The main structural features: 1. Able to switch with guide sleeves and none-guide sleeves, according to the length of the work pieces to process properly. 2. Machine works without guide sleeve does not require abrasive material, which can process bars with high-speed and high accuracy, the residual bar only 30mm. 3. Multi-tools, quick tools change 4. Can equip with power head to Y-axis combined processing 5. Able to process the various slender parts

Specification

Project	Model	CK1120
Power	Rated Voltage	Three Phase AC Current
	Rated Frequency	50Hz
	Total Input Power	4.75kW
CNC System	Domestic	YZ150
	Min Setting Value	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Y Axis Pulse Equivalent	0.001mm
	Z Axis Pulse Equivalent	0.001mm
	Max Programming size	±9999.999mm
	Cutting Speed	1--4000mm/min
	X Axis Fast Feed Rate	18000mm/min
	Y Axis Fast Feed Rate	18000mm/min
	Z Axis Fast Feed Rate	18000mm/min
Spindle	Max Bar Diameter	Ø20mm
	Spindle Hole Diameter	Ø21mm
	The height of spindle center from ground	980mm
	Rotating Speed	0-4000r/min
	Power	2KW
Stroke	X Axis Stroke	80mm
	Y Axis Stroke	150mm
	Z Axis Stroke	250mm
	X Axis Servo Motor Power	0.75KW
	Y Axis Servo Motor Power	0.75KW
	Z Axis Servo Motor Power	0.75KW
	Slide guide mode	Linear Guide Rail
Tool System	Gang Tool	12 tools
	Turning Tool	6 tools
	Tool Size	12*12mm
	Obverse Side Drilling Too	3 tools
	Drilling Spindle Size	ER11/20mm
Power Cutting Tool	Number	3 sets
	Motor Power	0.75kW
	Rotation Speed	3000r/min
	Collet Size	ER11
	Drilling Hole Size	Ø6mm
	Tapping Size	M6
Cooling System	Cutting Motor Power	0.12kW
	Capacity of Cooling Container	150L
Lubricating System	Motor Power	25W
	Capacity	2L
Pneumatic System	input Pressure of Compressed Air	0.4--0.6MPa
Machine Size	L*W*H	1450*850*1650mm
	Weight	1000kg
