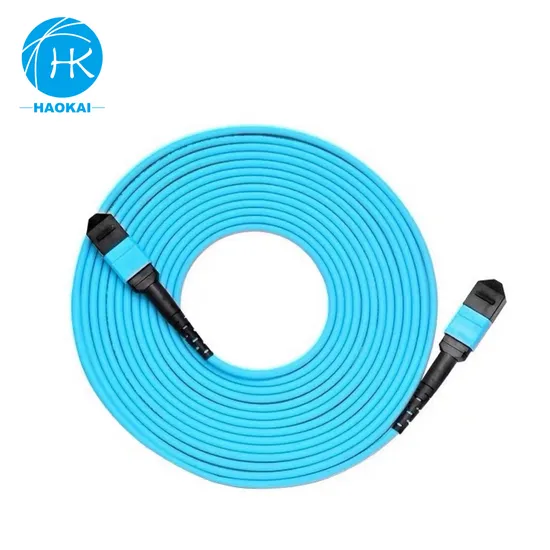

Om4 8core 15m Fiber Optic Cable Male Female Patch Cord

Product Description

OM4 8core 15m fiber optic cable Male Female Patch Cord Product Description MPO/MTP trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs.
It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged microcables structure.The compact cable optimize cableway use and improve airflow.These MPO/MTP cable are built with highest quality components.Low loss elite versions are offered, featuring low insertion loss for demanding high speed networks where power budgets are critical.
Product application 1.Data communication network.
2.Optical System Access network.
3.Storage area networking fiber channel.
4.High density architectures.
Performance characteristics 1. High performance in IL and RL2. 100% pre-terminated tested3. Supports 40G and 100G network applications4. Jacket material: LSZH, OFNR, OFNP available
5.Utilize MPO/MTP connectors
6.MPO connector complies with IEC-61754-7 and EIA/TIA-604-5
7.Compliant to directive 2002/95/EC (RoHS)and REACH SvHC

Product Parameters

Item	Parameter				Reference
	Single mode		Multi mode
	Standard	Elite	Standard	Elite
Insertion loss	Max≤0.75dB	Max≤0.35dB	Max≤0.7dB	Max≤0.35dB	IEC 61300-3-34
Returm loss	≥45dB(PC)	≥50dB(PC)	≥25dB(PC)	≥30dB(PC)	IEC 61300-3-6
	≥60dB(APC)	≥65dB(APC)
