Xhc715A/Vmc1050/Vmc1000 Vertical CNC Milling Cutting Drilling and Engraving Vertical Machining Center CNC Machine

Product Description

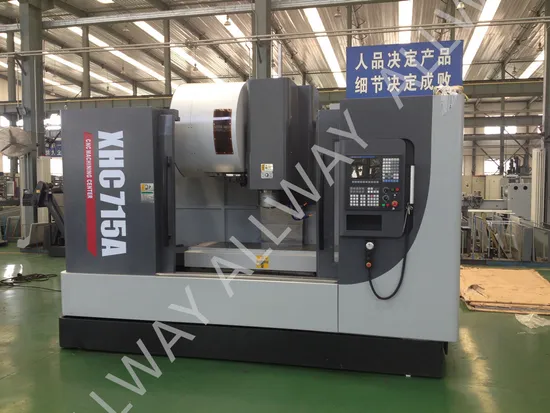

Vertical CNC Milling Cutting Drilling and Engraving Vertical Machining Center CNC Machine XHC715A/VMC1050/VMC1000
Advantage: 1.big table size:1600*500 ;
2. big Max. loading of table:750KG;
3.X/Y/Z travel is 1000/500/580.
1.Product introduction and use
XHC715A vertical machining center of X, Y, Z three-axis servo direct connects controled half closed loop, 3 axis are rectangular quenching hardened rail, guideway wide, large span, structure and dimension is compact and reasonable,spindle servo motor driving, the capacity of tool magazine 16 or 24 optional( XKC715A is cnc milling machine, without tool magazine).Can be achieved for a variety of plate, plate and shell, a complex parts, such as CAM, mold clamping, complete drilling, milling, boring, expansion, reaming, tapping and other process, are suitable for many varieties, medium small batch products of rough and finish machining, Can match the fourth axis of rotation, in order to meet the processing requirements of special parts.
2. structure feature
The X, Y, Z guideway are widen rectangle sliding guide rail, the Y direction guideway is the 4 guideways structure, and the intermediate frequency quenching and precision grinding, high rigidity;the surface of the slide guideways paste the PTFE material and precision lapping, with automatic forced lubrication, reduce feed movement of the friction resistance, reduce the low speed crawl, improve the accuracy of machine tool life;
3.STANDARD CONFIGRATION:
1)BT40 type high speed (6000 RPM) spindle unit from Taiwan,
6000rpm;
2)spindle servo motor: 11/15 kw(52.5N.M); :11KW(52.5N.M);
3)BT40 umbrella type with 16 tools capacity from Taiwan(cnc milling machine without this).
4) Mobile pulse generator;
5) The Z axis rigidity tapping Z;
6) The Z axis automatic balancing system;Z;
7) Centralized automatic oil lubrication;;
8)external cooling system(pipe,chip tray,box,pump) (,,,);
9) Manual removal chip;
10)external Air cool;
11) all protection sheet metal outer shield and inner screw and guide rail shield; ,;
12) adjust pad iron; ;
13)work light;
14)warning lamp;
15) FANUC 0i MF5;
4.Main technical parameters

Specification			unit	value
Spindle		Taper		BT40
		Pullstud		GB/T10944.3-JF40-45 (45 dgree)
		Speed	r/min	8000
		Spindle nose to work table	mm	170-750
		Spindle center to column guideway face	mm	545
Table		Table size	mm	1600×500
		T-slot No./width/distance	mm	5-18×80
		Max. loading of table	Kg	750
guideway		Type		All quenching rectangular box way
		Single width of X/Y/Z	mm	85/85/90,50
Ball screw		X-axis	mm	φ40×10
		Y-axis	mm	φ40×10
		Z-axis	mm	φ40×10
Travel		X-axis	mm	1000
		Y-axis	mm	500
		Z-axis	mm	580
Moving		Rapid moving of X	m/min	10
		Rapid moving of Y	m/min	10
		Rapid moving of Z	m/min	8
Tool magazine		type		Umbrella
		Tool number		16T(XKC715 CNC milling machine without tool magazine)
		Max. diameter of tools	mm	φ80/φ130
		Max. length of tools	mm	300
		Max. weight of tools	kg	7
		Speed of changing tool(tool to tool)	s	8
cooling		Cooling pump power	w	460
		Cooling flow	L/min	25
		Cooling tank volume	L	280
Lubrication type				auto
Position accuracy of X/Y/Z			mm	±0.015
Re-position accuracy			mm	±0.008
Power type	AC voltage		V	3 380V±10%
	frequency		HZ	50Hz±10%
Capacitance			kva	20
Air pressure			MPa	0.5-0.7
N/W			Kg	6500
Overall dimension (L*W*H)			mm	3500×2645×2400mm

5.OPTIONAL CONFIGURATION:
1)FAUNC 0i MF1, Mitsubishi, Siemens,GSK,and others
2) air gun for clean
3)The 4th-axis
a) Taiwan MRNC-255;
b) TTS-255 manul tailstock ,
c) Chuck¢200 and chuck seat ¢200,
4) BT40 Round plate with 24 tools A.T.C.capacity from Taiwan. 24;
5) coolant through spindle of Taiwan;
6) Chain type auto chip removal device ;
7)setting tool device.
