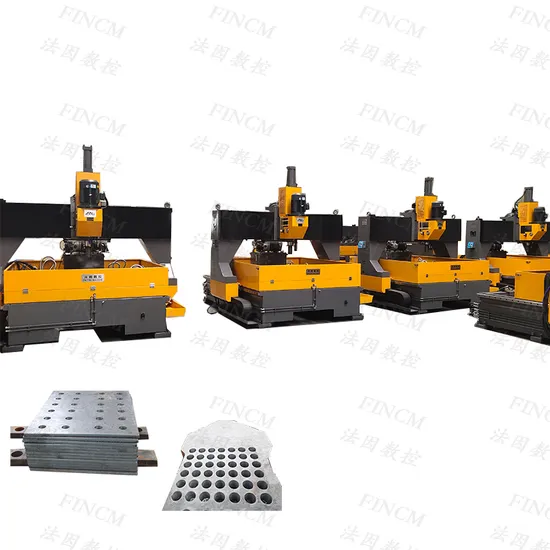

PHD3020 FINCM Steel Structure Construction Gantry Movable High Speed CNC Drilling Machine 3000mm*2000mm*100mm

Product Description

Product Description
PHD3020 FINCM Steel Structure Construction Gantry Movable High Speed CNC Drilling Machine 3000mm*2000mm*100mm
Applicable Industry:

This machine purpose is mainly used for drilling plate workpieces in steel structures such as construction, coaxial, iron tower, etc., and can also be used for drilling tube plates, baffles and circular flanges in boilers, petrochemical industries.

Main Technical Specifications:

Specification name	Items	Specification valve
Workpiece dimension	Material overlapping thickness	Max. 100mm
	Width×length	3000mm×2000mm one piece
		2000mm×1000mm two pieces
		1000mm×1000mm four pieces
Spindle	Spindle boring	BT50
	drill diameter	Max. Φ50mm
	rotate speed	0-2000r/min
	travel length	350mm
	process feeding	Servo motor driven
Workpiece clamp	clamp thickness	15-100mm
	clamp cylinder number	12
	Clamp force	7.5kN
	Clamp start	Foot switch
Cooling liquid	Recycle design	Forced circulation
	Cooling mode	Spray cooling
Hydraulic	Clamp pressure	6MPa(60kgf/cm2)
	capacity of tank	About 100L
Air pressure	Air source	0.4MPa(4kgf/cm2)
Motor	Spindle	15kW
	Feeding	2.0kW
	Hydraulic pump	2.2kW
	Cooling pump	0.25kW
	X axle servo system	2.0kW
	Y axle servo system	1.5kW
	Chip conveyor	0.75kW
Machine dimension	L×W×H	About 5500×3550×2900mm
	Weight	About 7000kg
Control axle number	X,Y(Point control),Z(servo feeding)
Travel range	X axle	2000mm
	Y axle	2000mm
	Z axle	350mm

List of Free Accessories to be shipped together with the machine:

NO	Code	Name	Quantity	Remark
1	BT50-40	hilt	1
2	BT50-I	Pull nail	1
3		"O"ring 16×2.4mm	5 pcs
4		"O"ring 11×1.9mm	5 pcs
5		"O"ring 50×3.1mm	1 piece

Key Outsourced Components List:

NO.	Name	Brand	Country
1	Linear guide rail	PMI/HIWIN	Taiwan (China)
2	Hydraulic pump	JustMark	Taiwan (China)
3	Electromagnetic valve	Atos/Yuken	Italy/Japan
4	Servo motor	Inovance	China
5	Servo driver	Inovance	China
6	PLC	Inovance	China
7	Computer	Lenovo	China

Product Feature:
The ideal drilling machine is mainly composed of bed(worktable), gantry, drilling head, longitudian slide platform, quick-change chuck, hydraulic system, control system, cooling system and chip-conveyor etc.
The cnc engraving machine can use internal cooling high speed steel drilling head with coating. Using the internal cooling high speed steel drilling head with coating can significantly improve the processing efficiency and quality.
It adopt precision spindle with high rotation accuracy and good rigidity. Equipped with BT50 taper hole, it is convenient to change the tool. It can be used for clamping twist drills and hard alloy drills, which has a wide range of applications. The main shaft is driven by a main shaft frequency conversion motor, which has a wide range of applications. The speed can be continuously variable in a wide range to meet the needs of multiple speeds.
The machine has 3 CNC axes: gantry positioning axis (X axis); horizontal positioning axis of drilling power head (Y axis); feed axis of drilling power head (Z axis). Each CNC axis is guided by a precision linear rolling guide, driven by AC servo motor + ball screw.
Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
