HDPE LDPE Poly Pbat PLA Biodegradable Mini Extrusion Film Blowing Machine Blown Film Extruder Blown Film Extrusion Machine

Product Description

Two Layer Co-Extrusion Rotary Die-Head Fully Automatic Rewinding Film Blowing Machine Set
We are Film Blowing Machine manufacturer from china, our business is mainly to produce and sell different type Film Blowing Machine, We also can customized product according to the client's requirement. We are always try our best to become the good Film Blowing Machine manufacturer, Welcome the customer from all over the world to contact with us. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
Usage:
This kind machine is plastic film blowing machine,for making HDPE,LDPE,LLDPE plastic film rolls.
The film widely used for agricultural film,greenhouse film,plastic bag making,etc
Function Description:
It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts variable frequency motor to improve the speed regulating stability and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, it can achieve the best effect of cooling.
Optional Device:
1.Auto loader
2. Film surface treater
3. Rotary die head
4. Air compressor
5. Mechanics screen changer
6. Double wind
Equipment Parameter:

Model		SJ-A45		SJ-A50		SJ-A55		SJ-A60	SJ-A65
Suitable material		HDPE,LDPE,LLDPE
Reduced diameter of film (mm)		100-500		300-600		400-800		500-1000	600-1200
Film thickness of (mm)		HD:0.009-0.05 LD:0.02-0.15
Max.output(kg/h)		HD35 LD45		HD 40 LD 50		HD 50 LD 60		HD 55 LD65	HD60 LD70
Extruder
Screw diameter		45		50		55		60	65
Screw L/D		28:1/30:1
Screw material		Sacm-645/38 crmoala
Cylinder material		Sacm-645/38 crmoala
Cylinder cooling(w)		180*2		250*2		370*2		370*2	550*3
Main motor(kw)		11		15		18.5		22	22
Cylinder temperature control		3		3		3		3	3
Average power consume(kw)		10		12		18		25	30
Type of die
Die size(mm)	HD60 LD100		HD80 LD120		HD80 LD180		HD100 LD200		HD100 LD220
Temperature control	3		3		3		3		3
Air ring	1		1		1		1		1
Air blower power (kw)	1.5		2.2		3		3		4
Center steady stick	1		1		1		1		1
Take up unit
Roller width(mm)	160*650		160*850		165*1100		165*1200		165*1400
Take-up speed(m/min)	10-100		10-100		10-100		10-100		10-80
Take-up motor(2.2)	0.75		0.75		1.1		1.1		1.5
Winding Unit
Type	Surface friction type
Winding motor(N.m)	10		10		10		10		10
Winding speed(m/min)	10-100		10-100		10-100		10-80		10-80
Voltage	380V,50HZ,3PHASE
Outline diameter (LxWxH)(mm)	5000×1800×4200		5500*2200*4500		5500*2500*5200		5000*2400*4200		5500*2500*5200
Weight(kg)	2000		2200		2500		2800		3000
Optional equipment	1.Auto loader 2. Film surface treater 3. Rotary die head 4. Air compressor 5. Mechanics screen changer 6. Double wind

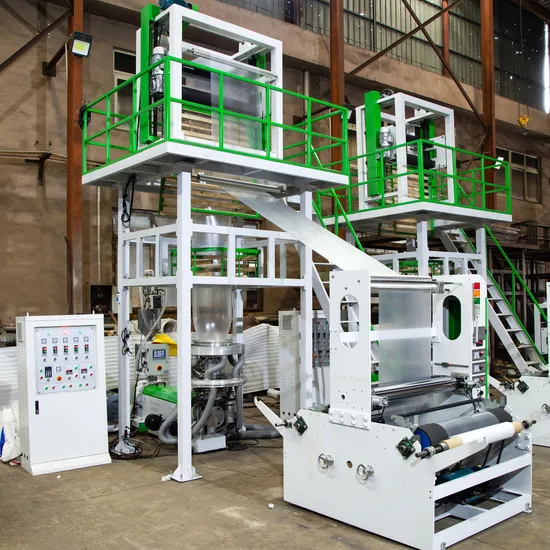

Machine Details
Our Workshop
Packaging & Shipping
Certifications
FAQ
1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company
2.Q:Where is your factory located?
A:We are located Ruian City,Zhejiang Province,China
From SHANGHAI by air is 40 mins,by train is 4 hours.
From GUANGZHOU by air is 2 hours.
3.Q:How many years warranty?Can you teach us?
A:Usually,we given customer one year warranty time.We also have oversea technician service to help you install the machines.
4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram and etc.
