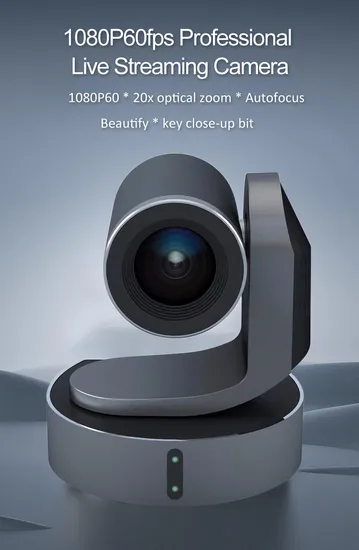

1080P60fps 20X Conference HDMI / USB3.0 / IP Live Streaming PTZ Video Conference Camera
| US$99.00-9,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SVN-1080P60U20P
Communication Mode
Wired
Compatibility
MacOS, Windows
Display Size
None
Microphone Type
None
Recording Feature
External Recording Device Support
Remote Control
Infrared Remote
Video Quality
High Definition (HD)
Image Sensor
Sony Imx307
Pixels
2MP
Optical Zoom
20X
Focus
Automatic/Manual/One-Touch Trigger
Min. Illumination
0.01lux (F1.8, AGC on, Color)
Electronic Shutter
Auto/Manual, Shutter Range: 1/1-1/30, 000s
Gain
Auto/Manual
Signal-to-Noise Ratio
>55dB
Preset Point
255
USB Video Compression
Yuv/H.264/Mjpeg
Protocols
UVC1.1; Uac1.0
Video Outputs
HDMI USB3.0 IP
Communications
1 RS485/232
Address Range
0-255
Power Supply
12V DC
Transport Package
142*125*157mm
Specification
CE, FCC
Trademark
OEM
Origin
Shenzhen, China
HS Code
8525801390
Production Capacity
50, 000PCS/Year
Product Description
1080P60fps 20X Conference HDMI / USB3.0 / IP Live Streaming PTZ CameraKey Features 1/2.8" 1080P60fps Sony IMX307 CMOS Sensor 20X (5.7~94.4mm) Optical Zoom 2D/3D noise reduction algorithm, wide dynamic range Pan&Tilt operates quietly and smoothly, with precise and rapid positioning and a maximum horizontal speed of 200 °/s; HDMI, USB3.0, Network HD Video output; RS232, RS485, IP external control interface; With multi-function infrared remote control, easy to operate. Support various installation methods. Technical parameters
| Model | |
| Model No. | SVN-1080P60U20P |
| Camera | |
| Image Sensor | 1/2.8" 1080P60fps Progressive Scan SONY IMX307 Image sensor |
| Pixels | 1080P |
| Video format (HD) | 1920*1080@60/30/29.97/23.98fps, 1920*1080/1280*720@25/30/29.97/23.98fps |
| Lens | |
| Optical lens | 20x optical zoom lens, 5.7±5%~94.4±5%mm |
| Optical zoom | 20X |
| Min. imaging distance | 0.2m (wide angle) - 1.5m (far end) |
| HOV | 55° (wide angle) - 3.9° (distal) |
| Focus | Automatic/manual/one-touch trigger |
| Min. illumination | 0.01lux (F1.8, AGC ON, color) |
| Exposure control | Auto/Manual/Shutter Priority/Aperture Priority/Brightness Control/Backlight Compensation |
| Electronic shutter | Auto/Manual, Shutter range: 1/1-1/30,000s |
| Gain | Auto/Manual |
| White balance | Auto/Manual/Auto Tracking White Balance/Indoor/Outdoor/One Touch |
| Effects Mode | Backlight compensation, horizontal mirroring, vertical flip |
| Digital noise reduction | 2D & 3D digital noise reduction |
| Signal-to-noise ratio | >55dB |
| Backlight Compensation | Off/On Automatic backlight compensation |
| Pan&Tilt | |
| Rotation speed | Horizontal: 2.2°~200°/sec, Vertical: 1.5° ~100°/sec |
| Corner range | Horizontal: ±170°, Vertical: -30°~90° |
| Preset point | 255 |
| Preset Accuracy | 0.1° |
| Video encoding | |
| Network Interface | |
| Video compression | H.264 |
| Resolution/frame rate | Main stream: 1920*1080 60fps Sub stream: (704*576, 640*480, 640*360, 576*480, 352*288, 320*240, 320X180) 25/30fps |
| USB Interface | |
| Video compression | YUV/H.264/MJPEG |
| Resolution/frame rate | H.264: (1920*1080, 1280*720, 800*600, 640*480, 704*576, 320*240) 60fps MJPEG: (1920*1080, 1280*720, 800*600, 640*480, 704*576, 320*240) 60/30fps YUV: (1920*1080, 1280*720, 800*600, 640*480, 704*576, 320*240) 30fps |
| Protocols | UVC1.1; UAC1.0 |
| Containment | Support zoom, PTZ control, adjustable brightness, contrast, hue, saturation, sharpness parameters |
| HDMI Interface | |
| Resolution/frame rate | 1920*1080 1280*720 25/30/29.97/23.98fps |
| Network protocol | |
| Network protocol | IPV4, TCP, UDP, HTTP, FTP, NTP,DNS, DHCP,ARP, RTSP, RTP,RTCP, RTMP,NDI,SRT |
| Application programming | Supports VISCA, VISCA Over IP, standard protocols (ONVIF), private SDK and third-party management platform access. |
| Number of simultaneous previews | Maximum 20 channels |
| Interface | |
| Multiple video outputs | Support 3-CH HD video output simultaneously (HDMI USB3.0 IP) |
| Network | 1 RJ45, 10M/100M adaptive Ethernet port |
| Communications interface | 1 RS485/232 Compatible Interface, 1 RS232 In, 8-pin DIN |
| General | |
| Menus | English/Chinese Simplified |
| Address range | 0-255 |
| Temperature | Operating temperature: 0ºC~+50ºC, Storage temperature: -20ºC~+70ºC |
| Environmental humidity | 0 - 95% (non-condensing) |
| Power supply | 12V DC |
| Power consumption | <10W |
| Sizes | 142*125*157 mm |
| Net weight | 1.48Kg |
