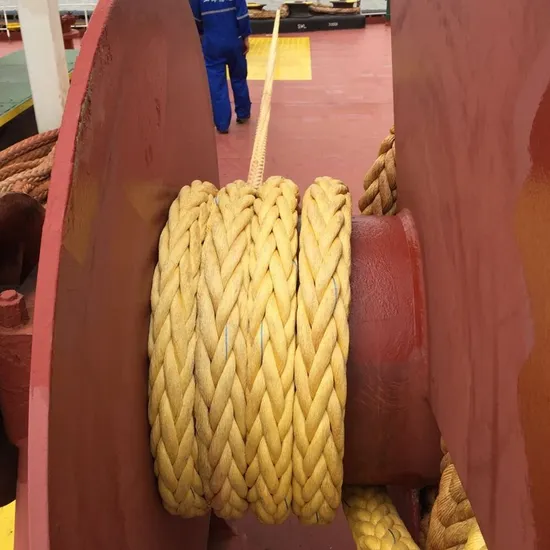

Premium Braided UHMWPE Fishing Lead Rope for Ships

Product Description

UHMWPE rope is a torque-free 8 strand &12-strand single braided rope that sizes for sizes and is as strong as steel all of above,making it an excellent wire rope replacement,at only 1/8th the weight of wire,it is a safe and efficient solution for all marine applications where wire is traditionally used,The combination of UHMWPE provide abrasion and tension fatigue resistance for superior wear,it'seasily spliced and inspected.
Specification:
*Fiber:UHMWPE
*Construction:8/12 strand
*SpecificGravity:0.975(floats)
*Treatment:Marine,Fishing,Offshore.
*Melting Point:145ºC
*Elongation at Break:≤3.8%
*Abrasion Resistance:Excellent
*U.V.Resistance:Good
*Temperature Resistance:70ºC maxcontinuous
*Chemical Resistance:Excellent
*Dry&Wetconditions:Wet Strength equals dry strength
*Range of use:Fishing,off-shore installation,mooring
*Spliced strength:±10%
*Weight and length tolerance:±5%

Diameter (mm)	Weight (KGS/100m)	BS (Ton)		Diameter (mm)	Weight (KGS/100m)	BS (Ton)
6	2.3	4.3		38	75.9	122
8	3.7	6.7		40	84	135
10	5.6	9.7		42	92.6	148
12	7.9	13.3		44	102	161
14	10.6	17.8		46	111	176
16	13.7	22.9		48	121	190
18	17.3	28.8		50	131	205
20	21.2	35.3		52	142	221
22	25.6	42.5		56	164	254
24	30.4	50.3		60	189	289
26	35.7	58.8		64	215	325
28	41.3	67.8		68	242	364
30	47.4	77.5		72	271	404
32	53.9	87.5		80	335	488
34	60.8	98.6		88	405	578
36	68.1	110		96	481	673
