Shanding 250kg Double Mast Aluminum Alloy Lift Table Working Platforms for Sale
| US$1,000.00-9,980.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GTWY- SERIES
Application
Workshop Crane, Shipboard Crane, Warehouse Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Light Level
Moves
Self-propelled
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof
Certification
ISO 9001
Rated Loading
100~300kg
Rated Lifting Height
4-20m
Table Size
650*650mm
Rated Power
2kw
MOQ
1 Unit
Transport Package
Poly Wood Box
Specification
4M-16M
Trademark
SHANDING
Origin
Shandong, China
HS Code
8428109000
Production Capacity
100pieces Per Week
Product Description

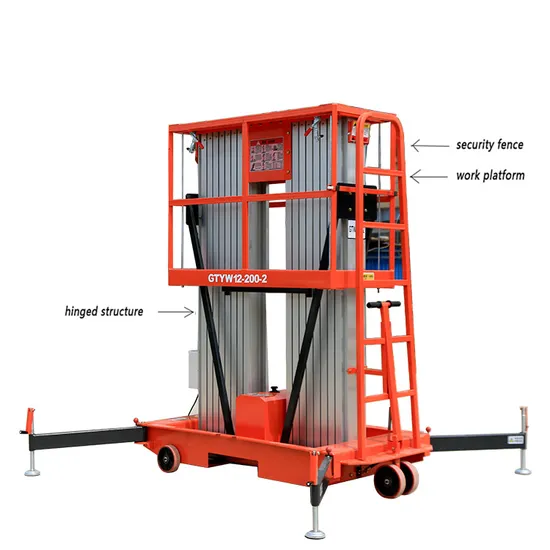

SHANDING GTWY-SERIES LIFTING TABLE
Our Lift Table is designed off the feedback of numerous workshops around the country in need of a lift table that is smaller and not so high price point. With the small table, it's much easier to move around within the shop and much easier to find a storage location for it. What makes it unique? It's made to work on WALMARKER,BESTBUY and many other manufactures, making this table versatile for any job!
MAIN PARAMETERS:
| MODEL NO | GTWY6-200-2 | GTWY8-200-2 | GTWY10-200-2 | GTWY12-200-2 |
| MAX WORKING HEIGHT | 8M | 10m | 12m | 14m |
| MAX HEIGHT OF WORKING TABLE | 6m | 8m | 10m | 12m |
| RATED LOADING | 300kg | 300kg | 250kg | 200kg |
| WORKING TABLE SIZE | 1200*630*1100MM | 1200*630*1100MM | 1500*630*1100MM | 1500*630*1100MM |
| OVERALL SIZE | 1553*850*2000MM | 1553*850*2000MM | 1553*850*2000MM | 1553*850*2000MM |
| MIN GROUND CLEARANCE | 60mm | 60MM | 60MM | 60mm |
| WHEELBASE | 1.23m | 1.23m | 1.23m | 1.23m |
| RATED POWER OF RISING MOTOR | 220V/1.5kw | 220V/1.5kw | 220V/1.5kw | 220V/1.5kw |
| SPEED OF RISE &DECLINE | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
| WEIGHT | 510kg | 590kg | 690kg | 730kg |
WORKINGSHOW:
