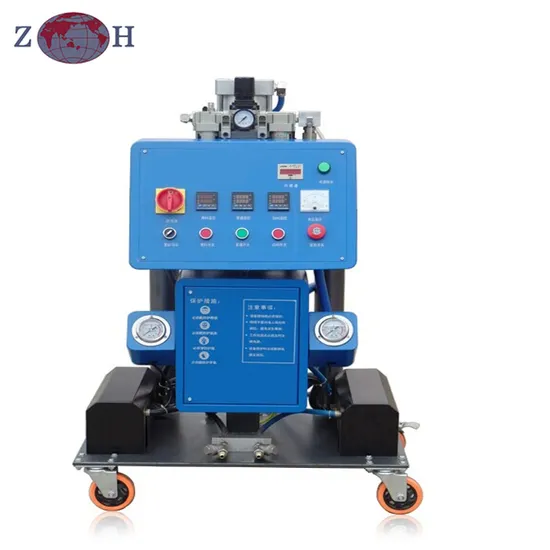

High Pressure Polyurethane Spray Foam Machine
| US$4,500.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GZ-1600
Principle
High-Pressure Air Type
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Model
Gz-1600
Heating Power
5kw
Driving Type
Pneumatic
Flux Capacity
1-10kg/Min
Mixing Ratio
1:1
Air Compressor
5-8MPa
Cleaning System
Pneumatic Cleaning
Voltage
220V, 50Hz
Transport Package
Wooden Package
Specification
600 x 700 x 900mm (L x W x H)
Trademark
Zhenhuan
Origin
Shandong
HS Code
8455229090
Production Capacity
50 Sets Per Month
Product Description
High pressure polyurethane spray foam machine This polyurethane spray foam machine is used for wall roof, refrigeratory, and box, pipe insulation purpose.We can supply both high pressure and low pressure spray foam machine.
Feature of Polyurethane spray foam machine
Light and small, suitable for site work Pneumatic motor High precision proportion pump Main machine heating system Euipped with emergency switch Main technical data of polyurethane spray foam machine
| No. | Item | Technical data |
| 1 | Model number | GZ1600 |
| 2 | Flux capacity | 1-10kg/min |
| 3 | Working pressure | 5-8MPa |
| 4 | Heating power | 5 kW |
| 5 | Equipped pipe length | 9 meters heating pipe (can be extended) |
| 6 | Air compressor | 0.5-0.8MPa (to be equipped by buyer) |
| 7 | Dimension | 600 x 700 x 900mm |
| 8 | Weight | 120kg |
| 9 | Ratio between A and B | 1 : 1 |
| 10 | Driven type | Pneumatic |
Our Nantong Zhenhuan Trade Co., Ltd. is specialized in machines for more than 10 years, and has certified by TUV, BV, SGS, with good reputation and credit. We can provide you not only good quality polyurethane spray foam machine but also good after-sale service.
Pls contact us for more services and information of Polyurethane spray foam machine
Name: Lily
Mobile No.: 0086 152 6277 5225
Tel: 0086 513 8762 8369
Fax: 0086 513 8763 5890
