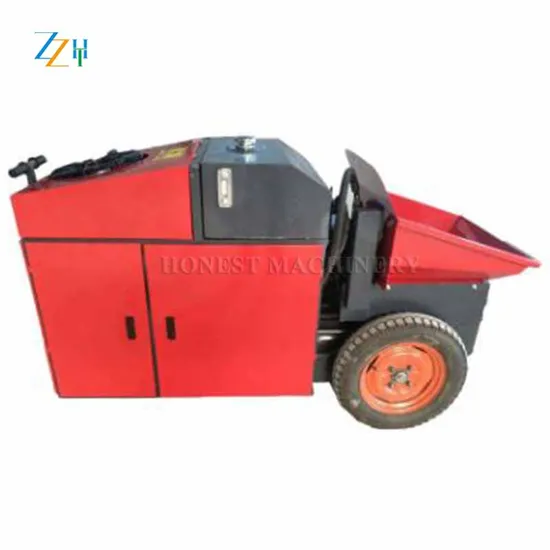

Advanced Structure Concrete Pump / Concrete Pump Machine
Basic Info.
Model NO.
HT-EB-20
Type
Concrete Pump
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
See Specifications for Details
Feeding Height
20m
Vibrating Amplitude
See Specifications for Details
Certification
CE, Concrete Pump Machine
Condition
New
Color
Customer Demand
Product Name
Concrete Pump Machine
Motor Power
15kw
Hydraulic Tank Capacity
100L
Hydraulic Oil Cooling Method
Wind Cold
Horizontal Conveying Distance
30m
Features
High Efficiency,Long Service Life
Transport Package
Fumigation-Free Wooden Box Packaging
Specification
1400*700*1650mm
Trademark
HONEST
Origin
Henan, China(Mainland)
HS Code
8413400000
Production Capacity
300set/Month
Packaging & Delivery
Package Size
140.00cm * 70.00cm * 165.00cm
Package Gross Weight
650.000kg
Product Description
Advanced Structure Concrete Pump / Concrete Pump MachineProduct Description
Secondary structural Concrete Pump Machine purposes: used in high-rise building mortar and fine aggregate concrete transportation, secondary structural column grouting, reservoirs, hydropower stations,ports, docks in a variety of pressure grouting, foundation treatment, weak foundation, grouting reinforcement, Tunnel, subway, mine construction backfill grouting bolt support, Secondary structural column irrigation, and slope spray anchor support.
Product Parameters
| Model | HT-EB-20 |
| Motor power | 15kw |
| Vertical conveying height | 20m |
| Horizontal conveying distance | 30m |
| Delivery volume | 6-8m³ |
| The maximum size of bone | 2cm |
| Hydraulic tank capacity | 100L |
| Hydraulic oil cooling method | Wind cold |
| Weight | 650kg |
| Dimension | 1400*700*1650mm |
| Model | HT-EB-20S |
| Working form | S pipe valve |
| Feeding height | 0.7m |
| Aggregate size | 0.5-2Cm |
| Hydraulic system form | Remote control electric control mode |
| Maximum pressure | 18Mpa |
| Working pressure | 10Mpa |
| Hydraulic oil cooling | Air cooling |
| Vertical transport distance | 25m |
| Horizontal transport distance | 60m |
| Pipe diameter | 65mm-80mm |
| Power | 11Kw |
| Weight | 600Kg |
| Dimension | 1900*750*1200mm |
