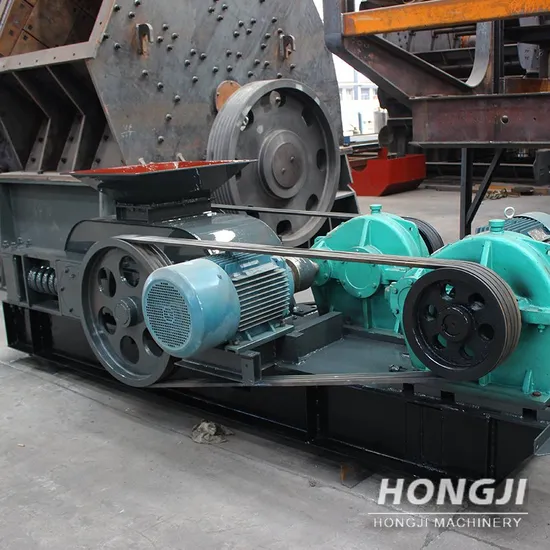

High Capacity Double Roller Crusher Rock Stone Sand Making Roll Crusher

Product Description

High Capacity Double Roller Crusher Rock Stone Sand Making Roll Crusher Product Description
Roller crusher is a kind of mining machinery, also known as double-roller crusher. Mainly used for crushing ore. This machine has the advantages of small size, large crushing ratio (5-8), low noise, simple structure, easy maintenance, uniform particle size of crushed materials, sensitive overload protection, safety and reliability.
Applied material: materials such as pebble, cinder, activated carbon, hollow brick, molybdenum ore and so on.
Product Features
1. Used for almost any material and for crushing up to 0.5 mm.
2. More economical because of its higher production capacity and lower power requirement.
3. Segmented roll designs available in a wide selection of tooth configurations and abrasion-resistant materials for rugged performance and long life.
4. To accommodate a variety of crushing applications, the crusher achieves reduction ratios up to 16:1.
5. Compared to impact crushing, roller crusher creates much less dust resulting in a cleaner work area.
6. Simplified two-motor drive system eliminates gearbox maintenance.
Product Parameters

Model	Roller diameter (mm)	Roller width (mm)	Input Size (mm)	Discharging Gate(mm)	Processing capacity(t/h)	Power Models	Motor power (kw)
2PG0425	Ф400	250	≤25	2-8	5-10	Y132M-6	5.5×2
2PG0640	Ф600	400	≤25	2-8	10-20	Y180L-6	15×2
2PG0740	Ф700	400	≤25	2-8	15-30	Y200L-4	30×2
2PG0850	Ф800	500	≤25	2-8	20-40	Y225M-4	45×2
2PG1060	Ф1000	600	≤30	2-10	30-50	Y250M-4	55×2
2PG1260	Ф1200	600	≤30	2-10	40-70	Y315M-6	75×2
2PG1560	Ф1500	600	≤30	2-10	60-110	Y315L-6	110×2

Working Principle
The roller crushers are rolled by two mutually rotating rollers. It is composed of motor, bracket, fixed roller, moving roller and safety spring. The roller surface is mostly smooth. The bearing of the movable roller can be moved along the frame and supported by a strong safety spring. When a particularly hard object falls in, the bearing can be removed and the object spits out. Before normal operation, the gap between the two rollers should be adjusted with gaskets to ensure the crushing ratio. Suitable for medium crushing aggregate.
