1. Technical features
The imported control system and its matching servo driver and motor are used to realize three axis linkage. It is suitable for the parts with proper batch, which are complex, many processes, high precision requirements, need various types of ordinary machine tools, various cutting tools and tooling, and can be processed after many times of clamping and adjustment. Main processing special-shaped parts, plates, sets, plate parts. It is widely used in electronic, mechanical, automotive, aircraft, aerospace, ship, national defense and other fields of products.

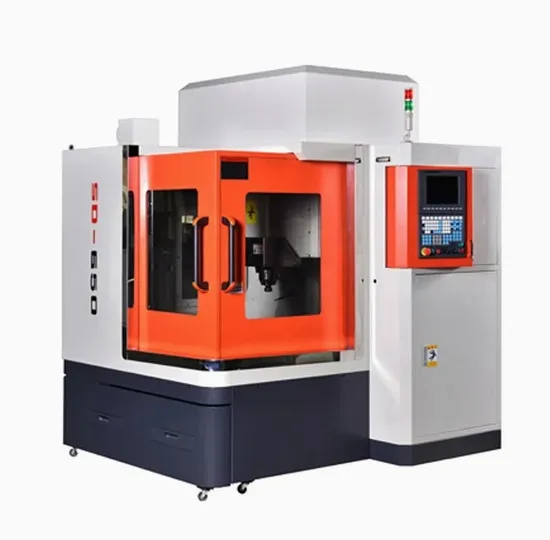

High quality Hot sale CNC engraving and milling machine LK650
Mechanical structure
Structure of the whole machine: The main parts of the fuselage are cast with high quality cast iron, the internal ribs are strengthened, all of them are tempered, and the finite element analysis is carried out by the special design software, which has the characteristics of high strength, good stability and not easy to deform, which ensures the rigidity of the whole machine and the stability of the environment for long-term use.
Spindle: Ronghua motorized spindle has the advantages of compact structure, light weight, small inertia, small vibration, low noise, fast response, etc. the high-speed bearing technology is adopted for the motorized spindle bearing, which is wear-resistant and heat-resistant, and its service life is several times that of the traditional bearing.
Transmission parts: Using Taiwan TPI precision bearing and Taiwan Yintai high quality precision ball screw. The pre stretching process is adopted for the installation of the ball screw. The rigidity of the transmission parts is improved, and the elongation of the ball screw caused by the thermal stress effect during the operation of the ball screw is eliminated, so as to improve the maintenance of the accuracy in the long-term use of the machine tool.
Guide rail: The three axis adopts 4 rows of circular arc contact type and 45°contact angle steel ball row design, with high rigidity, four directions of equal load design, good walking smoothness, low noise and other characteristics. It has the ability of automatic centering, suitable for high-speed application, can maintain accuracy for a long time, has the characteristics of interchangeability, high positioning accuracy, good repeatability, in line with international standards.
System: Equipped with high-performance imported CNC system, to ensure the stability of machine control, but also to ensure the CNC processing function and auxiliary function required by users.
Drive: X, y, Z axis are imported motor, with good control characteristics, large torque, good tracking accuracy, fast response, good stability, etc.
Lubrication: The guide rail and ball screw adopt centralized automatic lubrication system, which can inject oil to each lubricating part regularly and quantitatively, ensure the uniform lubrication of each moving surface, effectively reduce the friction resistance, improve the motion accuracy, and ensure the service life of the guide rail and ball screw.
Machine tool protection: The machine tool adopts fully enclosed protection to ensure the personal safety of workers in the process of processing, and make the coolant and iron chips in the process of processing be safely and fully recovered to ensure the cleanliness of the workplace. The guide rail of the machine tool is protected by the stainless steel telescopic shield of Taiwan Yinxing, which has the characteristics of good protection performance and long service life, which can effectively prevent iron chips and coolant from entering the machine tool and damage the guide rail and screw rod. The electric control box adopts fully sealed design, and the heat exchanger is used for heat dissipation, which ensures the cleanness of the electric control box and the service life of the electrical components.
Quality assurance: When the fuselage is assembled, each process is controlled according to the national standard tolerance, which effectively reduces the overall deviation caused by the accumulated error. After the completion of the system assembly, 72 hours of copying machine operation, monitoring noise, vibration, rapid movement, tool change and other indicators. Advanced instruments such as laser interferometer, ball bar instrument, dynamic balance instrument and three coordinate measuring instrument are used to test the machine tool, and the parts are tested for trial machining, heavy cutting and rigid tapping, so as to ensure that all performances meet the requirements of the factory with high quality.
The safety design of the machine tool conforms to the relevant provisions of GB 1560-2004 general technical conditions for safety protection of metal cutting machine tools, and its geometric accuracy standard conforms to the relevant provisions of GB / t24109-2009 CNC engraving and milling machine and JB / t8771.4-1998 inspection conditions Part 4: positioning accuracy and re positioning accuracy test of linear and rotary lines.

High quality Hot sale CNC engraving and milling machine LK650
2.Main technical indicators

CNC engraving and milling machine parameters
project	unit	LK-650	LK-660	LK-760	LK-8080	LK-1080
X-axis travel	mm	500	600	600	800	800
Y-axis travel	mm	600	600	700	800	1000
Z-axis travel	mm	260	260	350	400	400
Spindle nose to table	mm	50-310	50-310	30-290	70-470	70-470
Three-axis guide width		X/Y:30 Z:25	X/Y:30 Z:25	X/Y/Z:30	X/Y/Z:MSA35	X/Y/Z:MSA35
Table size	mm	500*600	600*600	600*700	800*800	800*1000
T-slot	mm	6*16*90	6*16*90	6*16*90	7*18*100	9*18*100
Max load capability	kg	300	300	300	400	400
Standard spindle		Motorized spindle	Motorized spindle	Motorized spindle	Motorized spindle	Motorized spindle
Spindle speed	rpm	3000-24000	3000-24000	3000-24000	3000-24000	3000-24000
Spindle power					5.5	5.5
Spindle taper		ER25-32	ER25-32	ER25-32	ER25-32	ER25-32
Maximum cutting feed rate (X/Y/Z)	m/min	8	8	8	8	8
Rapid speed(X/Y/Z)	m/min	X/Y/Z:15	X/Y/Z:15	X/Y/Z:15	X/Y/:18 Z:15	X/Y/:18 Z:15
Ball screw diameter/pitch	mm	X/Y/Z:32/5	X/Y/Z:32/5	X/Y/Z:32/5	X/Y:40/6 Z:32/5	X/Y:40/6 Z:32/5
Positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repeatability	mm	±0.003	±0.003	±0.003	±0.003	±0.003
Air pressure	kgf/cm²	6	6	6	6	6
Net weight of machine	kg	3200	3400	3600	4800	5300
Area	mm²	1950*1895	1950*1895	1950*1895	2450*2150	2750*2150
Machine height	mm	2355	2355	2355	2673	2673

3.Configuration list

Serial number	Standard accessries	Specification details	Manufacturer	Origin
1	Triaxial angular contact ball bearing	Outer diameter: 62, inner diameter: 25	TPI	Taiwan, China
2	Triaxial ball screw (C3 class)	X,Y,Z:R40-5T5-FDDC-C3 class	Shangyin / Yintai	Taiwan, China
3	Triaxial linear guide (P class)	MSA35 PII	Shangyin / Yintai	Taiwan, China
4	Motorized spindle	ER25-32 3000-24000rpm	Ronghua	Chinese Mainland
5	Triaxial telescopic cover	Y-axis stainless steel, z-axis organ board	Hongzhen	Chinese Mainland
6	Centralized automatic lubrication system	BE2202F-210X	Shengxiang	Taiwan, China
7	CNC system	21A system	Xindai	Taiwan, China
8	Triaxial motor and drive system	AC servo 1300W	Yaskawa	Japan
9	Spindle cooling system	Independent oil cooler	Ruike	Guangdong,China
10	Lighting device	LED work light	Laizhen	Shanghai, China
11	Tool detection	JS-68RG	Jingsen	Changzhou,China
12	Frequency converter	VFD075B43A	Sifang	Guangdong,China
13	Contactor		Shilin	Taiwan, China
14	Miniature circuit breaker		Schneider	Japan
15	Total power supply	AC380V,12KW
16	Anchor bolt socket + anchor bolt + nut	n/a		Chinese Mainland
17	Tool Box	Open spanner 24/27, open spanner 32/34, wrench ER32, high precision ER32,barrel clamp Φ4. Φ5. Φ6. Φ8. Φ10. Φ12. Φ14. Φ16. Φ18. Φ20		Chinese Mainland

4.Select configuration

No.	Name	No.	Name
1	Fanaco control system	5	12000rpm directly connected BT40 spindle
2	12 BT30 hat shaped tool magazine	6	CNC indexing plate (4th axis)
3	BT30 motorized spindle	7	Oil mist recovery system
4	12000rpm main shaft directly connected with BT30

5.Attached accessories

No.	Name	No.	Name
1	Packing list	3	Mechanical operation manual
2	Accuracy check list	4
