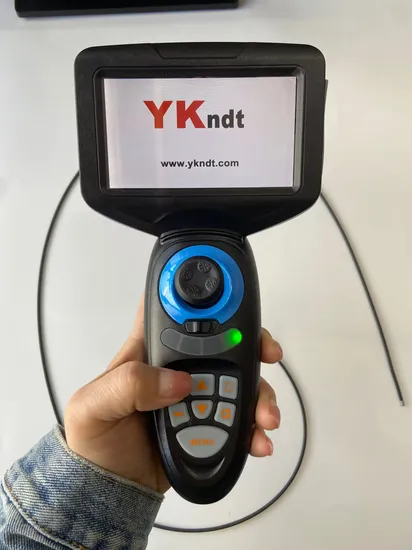

Joystick Video Borescope with Camera Lens 6mm, Working Length 1m, 4.5 Inch LCD
| US$100.00-900.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SZX601J
Testing Equipment Type
All Is Ok
Certification
CE, ISO, RoHS
Update Method
by Email
Condition
New
Standard
Standard
Camera Lens
360 Degrees Rotation
Control
Joystick
Cable
1.0m
Camera
6.0mm
Depth of Field
15mm-Infinity
Field of View
80 Degree
Transport Package
Instrument Case / Box
Specification
18cm x 40cm x 50cm
Trademark
YKndt
Origin
China
HS Code
9031809090
Production Capacity
220 PCS / Month
Product Description
Joystick Video Borescope with Camera Lens 6mm, Working Length 1m, 4.5 Inch LCD Camera parameters| model | SZX601J | external diameter | Φ 6.0mm |
| pixel point | For about 1,000,000 pixels | Probe length | 16 millimetre |
| angle of field | 120 degrees | Bend angle (top / bottom / left / right) | 180° |
| depth of field | 10-100 millimetre | Insert tube length | The standard is 1 meter long |
| Observation direction | foresight | Insert pipe material | Stainless steel wire woven pipe |
| lighting | Highlight the LED lighting |
| Rlever control and direction | 360° revolve | fixure | Fixed internal resistance |
| guide angle | One side>, 90 ° | Guide distance and length | Standard 1 m |
| Axial control | 360 ° Axial rotation | insert tube | A 4-layer tungsten wire woven tube |
| System weight | Complete equipment including chassis: 1.5 kg bare machine: <1 kg | Host size | 14.5 cm X 10.5 cm X 4.5 cm |
| source | Lithium battery: 3.7V,3600 maH | construction material | Plastic PC shell |
| LCD | Bright 4.5-inch active matrix color LCD display | aiming | Adjust the 4th gear manually |
| The Data I / O port | USB2.0 Port, WiFi | internal storage | 16G High-speed SD Card |
| Keybutton function | Menu operations, videos, photos | white balance | automatic white balance |
| Image function | Image mirroring, zoom, preview, recording | linguistic support | Support for the 12 countries |
3. display and system configuration
| Operating temperature of the host system | -10 °C 50 °C, the LCD panel must be heated below 0 °C | relative humidity | Maximum of 90%, with no condensation |
| Video probe operating temperature | -20 °C 60 °C, below 0 °C should reduce boot operations | waterproof | Probe and objective lens can withstand IP67 waterproof |
