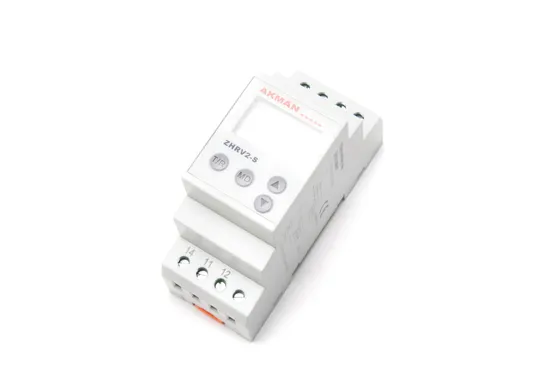

LCD Display Voltage Relay Phase Failure Phase Sequence Protection Relay
| US$16.45-18.21 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
ZHRV2-S M240
Phase
3
Electricity Type
Ac
Load
Micro Power Relay
Protective Characteristics
Enclosed Relay
Action Principle
Electronic Type
Size
Miniature
Type
Voltage Relay
Rated Frequency
50/60Hz
Rated Supply Voltage
M415(AC200V~500V), M240(AC125V~300V)
Phase Failure and Phase Sequence
<0.2s
Contact Configuration Capacity(a)
10A
Short Circuit Protector Type
Rt36-00 5A
Output Type
1c/O
Contact Capacity
Ue/Le:240V/1.5A,415V/0.95A
Net Weight
200g
DIN Rail Standard
Width 35mm
Transport Package
Standard Packing
Specification
90*36*65.5mm
Trademark
AKMAN
Origin
Zhejiang China
HS Code
8536490000
Production Capacity
10000PCS/Week
Product Description
Operating Instructions for ZHRV2-S Digital voltage monitoring relayApplications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage. Under-voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
Features:
Built-in microprocessors, true RMS voltage measurement, voltage measurement accuracy ≤1%.Measuring frequency 45Hz~64Hz,button setting, LCD display voltage and fault information, protection can be turned on or off. Check phase voltage value by button, with N-phase phase failure protection, DIN rail mounting.
Model Description
Function Setting Table
| Parameters | Setting range | Step amount | Factory setting | Remarks |
| Over-voltage action value | OFF-381V~500V | 1V | 437V | M415 |
| OFF-221V~300V | 1V | 253V | M240 | |
| Over-voltage delay | 0.1~20S | 0.1s | 2s | |
| Under-voltage action value | 260V~379V-OFF | 1V | 323V | M415 |
| 150V~219V-OFF | 1V | 187V | M240 | |
| Under-voltage delay | 0.1~20s | 0.1s | 2s | |
| Unbalance rate | OFF-5%~20% | 1% | 8% | |
| Asymmetry Delay time | 0.1~20s | 0.1s | 2s | |
| Phase sequence protection | ON-OFF | ON | ||
| Start/reset delay | 0.3~30S | 0.1s | 0.3s | |
| Automatic reset | ON-OFF | ON |
Technical Parameters
| Rated supply voltage | M415(3-phase 3-wire)AC200V~500V M240(3-phase 4-wire)AC125V~300V |
| Rated supply frequency | 50Hz/60Hz |
| Voltage measurement error | ≤1% (Entire setting range) |
| Delay error | ±10%+0.1s |
| Measurement accuracy | 1%, RMS |
| Phase failure and phase sequence | ≤0.2s |
| Rated insulation voltage | 415V |
| Contact configuration capacity(A) | 10A |
| IP Class | IP20 |
| Class of pollution | 3 |
| Electrical Life | 105 |
| Mechanical life | 106 |
| Altitude | ≤2000m |
| Allowable relative humidity | ≤50%(40ºC)(No condensation) |
| Use category | AC-15 |
| Short circuit protector type | RT36-00 5A |
| Contact capacity | Ue/le:240V/1.5A,415V/0.95A |
| Output type | 1C/O |
| DIN rail Standard | Width 35mm(IEC/EN60715) |
Function diagram
Dimensions (mm)
