310V BLDC Standing Wall Pedestal Fan Electric Motor with External Drive Board Low Pressure DC Motor

Product Description

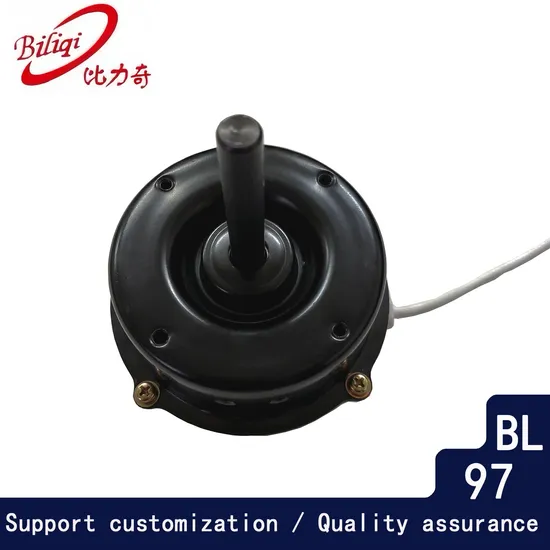

Model BL97 Brushless DC Motor
BL97- fan motor adopts automatic production process, and the processing of all parts is controlled by computer, accepted by computer, with meticulous quality.
Compared with AC motor, BLDCM has the advantages of energy saving, environmental protection, durability, high speed, low power consumption and large torque.
For the same motor, the efficiency of the motor can be changed according to different requirements within the range value and according to the driver program. It can achieve rated speed and rated power. Under different load conditions, rated speed can reach constant speed through self-regulation of power. Rated power under different load, lock the power and change the load speed. Realize the concept of "the same motor, different products".
BL97 is widely used in all kinds of household floor type, desk type and wall type fans. According to the positioning requirements of the products, it can also realize the four-way blowing function, improve the positioning of the products and improve the quality of the users.
BL97-DC fan motor deeply loved and adopted by the home appliance industry at home and abroad, can be debugged and customized according to the requirements, welcome to inquire
Product test data

310V	Fast		Middle		Slow		Remarks
Electric current ( mA )	483		432		389		The BLDCM can be used for multiple gears, and only three gears are designed for the display motor Test equipment includes: AC frequency converter, AC to DC power supply, control board
Power ( W )	45		38		25
Rotational speed ( RPM)	1200		1050		868
Air volume (m/s)	8.0		6.6		5.4
Temperature rise (K )

BLQ motor to achieve automatic production, the use of machine winding, wire drop, wire binding, soldering, acceptance, all controlled by computer, from production to acceptance, strict quality control, meticulous, obvious to all
All kinds of High Speed and High Precision stamping equipment in stamping Workshop,Professional equipment operators ensure the normal operation of the equipment and ensure the quality and stability of the products
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
