Zcjk Qty4-15 Fully Automatic Hydraulic Hollow Block Making Machine Concrete Paving Block Machine
| US$25,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
QTY4-15
Certification
CE, ISO
Customized
Customized
Automatic Grade
Automatic
Type
Vibration Molding
Raw Material
Concrete
Core Components
PLC, Pressure Vessel, Motor
Mechanism
Hydraulics,Vibration
Circle Time
15s
Vibrating Force
68kN
Main Power
28kw
Transport Package
Standard Packing
Specification
Standard
Trademark
ZCJK
Origin
Fujian, China
HS Code
8474802000
Production Capacity
60set/Year
Product Description

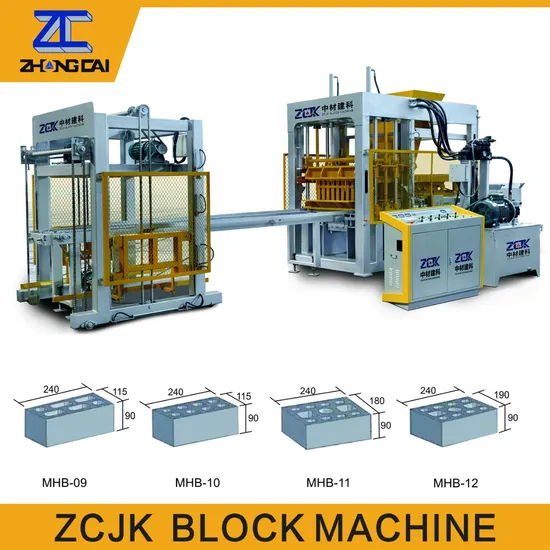

ZCJK QTY4-15 hydraulic Automatic Concrete Block Making Machine ZCJK concrete block equipment manufacturing technology pays more attention to the overall performance of the machinery and product quality, with smoother operating performance, higher block making efficiency, and lower failure rate. It is superior in performance, efficiency, energy saving, environmental protection.| NO. | ITEMS | FUNCTION | QTY(SET) |
| 1 | QTY4-15 block Making Machine | Making block automatically | 1 |
| 2 | Automatic block conveyor | Deliver the finished wet blocks | |
| 3 | Automatic pallet feeder | Feed pallets automatically | |
| 4 | Hydraulic unit | Offer hydraulic press for the whole line | 1 |
| 5 | PLC Control system | Control the whole production line. | 1 |
| 6 | Block Mould | Molding blocks | 1 |
| 7 | Belt Conveyor | Deliver the raw material to Block machine | 1 |
| 8 | JS500 Mixer | Mixing raw materials | 1 |
| 9 | Spare parts and tools | 1 |
| Production Capacity | |||||
| Items | Size(mm) | pcs/mould | Cycle Time | Production capacity | |
| (L*W*H) | pcs/hour | pcs/8 hours | |||
| solid brick | 240x115x53 | 30 | 15~20S | 7200 | 57600 |
| hollow block | 6" 400x150x200 | 6 | 15~20S | 1050 | 8400 |
| hollow block | 8" 400x200x200 | 4 | 15~20S | 840 | 6720 |
| paving brick | 200x100x60 | 16 | 15~20S | 2880 | 23040 |
| paving brick | 225*112.5*60 | 14 | 15~20S | 2520 | 20160 |
| QTY4-15 Technical Specifications | |||||
| Brand Name | ZCJK | ||||
| Model | QTY4-15 Hydraulic Automatic Block Making Machine | ||||
| Main Power | 28kw | ||||
| Weight | Host machine 4T, whole set 8-10T | ||||
| Host machine Dimensions | 3000*1700*2400mm | ||||
| Vibrating Force | 68KN | ||||
| Pallet Size | 1020*550*20mm | ||||
| Container Required | 1*40HQ Container | ||||
