China Aokol How Selling New All in One Air to Wter Heat Pump Water Heater, Domestic Water Heater. Solor Water Hearer.

Product Description

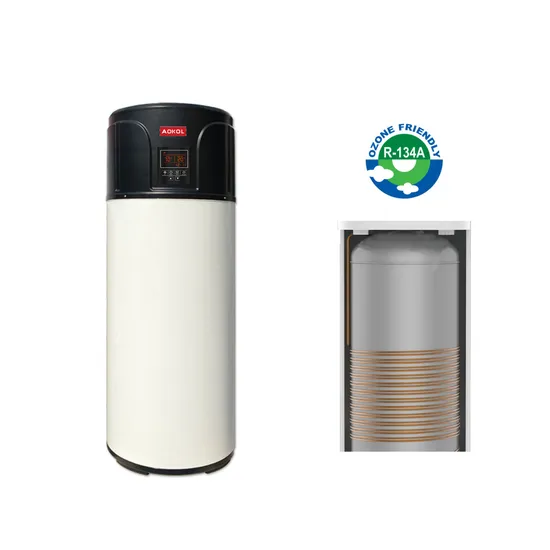

ALL IN ONE HEAT PUMP WATER HEATER TW Seies
★ R134A Refrigerant,Hot Water Temp 70ºC
★Enamel Water tank,External copper tube heat exchanger
★High COP Heat Pump Compressor ,fan motor ,Saving.
★Auxiliary Electric Heating as Backup Heat Source& high temperature antisepsis.
★Optional Solar Coil

Model		ASH1.8-150L/TW	ASH1.8-200L/TW	ASH3.0-250L/TW	ASH3.0-300L/TW
Power Supply	V/Hz	220~240V/50Hz	220~240V/50Hz	220~240V/50Hz	220~240V/50Hz
Water tank capacity		150L	200L	250L	300L
Rated Heating Capacity	w	1800	1800	3000	3000
Rated Power Input	w	470	470	805	805
COP	w/w	3.82	3.82	3.72	3.72
Rated Hot Water Output	L/h	39	39	64	64
Max Hot Water Temp		70ºC	70ºC	70ºC	70ºC
Auxiliary Electric Heating	w	2000	2000	2000	2000
Refrigerant	Type	R134A
Compressor	Type	GMCC
Throttling Device	Type	Electric Expansion Valve
Water Tank	Type	SPCC+Enamel Tank
Air Side Heat Exchanger	Type	φ7 Hydrophilic Inner-Grooved Copper		φ9.52 Hydrophilic Inner-Grooved Copper
Water Side Heat Exchanger	Type	50m φ7 Copper tube		63m φ7Copper tube
Shell Material	Type	Spraying of Galvanized Sheet
Operation Temp Range		-7~45ºC
Level against Electric Shock		I
Water-Proof Grade		IPX4
Water Pipe Dimension	inch	G1/2	G1/2	G3/4	G3/4
Noise	dB(A)	≤52	≤52	≤53	≤53
Gross Weight	kg	86	112	139	168
Net Dimension(DxH)	mm	φ570x1521	φ570x1803	φ6400x1810	φ640x2108
Packing Dimension(LxDxH)	mm	710X680X1616	710X680X1898	720X680X1020	720X720X2128
Enclosure		Safety Valve, Adapter, Instruction Manual, Drain Pipe

Ningbo AOKOL Heat pumpTechnology Co., Ltd. was established in 2002. It is a national high-tech enterprise specializing in R&D,manufacturing and sales of air to water heat pump, air conditioners and other products. The factory is located the port city, ahome appliance manufacturing base ---NingboAOKOL has a nationally recognized -30"C low-temperature air to water heat pump comprehensive performance laboratory and complete production and testing equipment. It has successively passed national CCC certification, CRAA certification, China Energy Conservation Certification, EU CE certification, German TUV certification, and EU ErP energy efficiency certification, EU ROHS environmental protection certification, 1SO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS18000 occupational health management system certification, AAA-level corporate credit rating certification, five-star after-sales service evaluation system certification, intellectual property management system certification, Contract energy management system certification and other qualification certifications. It has been awarded by the national authority: 2015"Top Ten Famous Brands", 2016 "Coal Conversion to Electricity* Demonstration Enterprise, 2017 "Outstanding Contribution Award forHeating". In 2018, 2019, and 2020, we won the title of "Outstanding Brand" awarded by the Heat Pump Professional Committee of China Energy Conservation Association for 3 consecutive years!AOKOL Heat pump Won the bid for the "Coal-to-Electricity" Clean Heating Project of the Government in the Cold Regions of NorthernChina for five consecutive years. At present: AOKOL has an annual production capacity of 500,000 air to water heat pump products,and the products have more than 2 million users worldwide. AOKOL is a well-known export company in the air to water heat pump industry in China.

FAQ
Q1:Are you a manufacturer?A1: Yes, AOKOL is professional heat pump manufacturer since 2002, with experienced and improved R&D, production, sales and servicesupplying.Q2: Do you provide OEM/ODM customized manufacturing service?A2:Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce Europe standard heat pumps under your brand andaccording to your special needs.Q3: Can you provide a sample?A3:Yes, sample order is acceptable.Q4: How is your price? A4:We have our own factory not the trading company. There is no middleman between clients and us. We give customers the mostfavorable price.Q5: How long is your Heat Pump delivery time?A5: it is 1-7 working days if the goods are in stock. if the goods are not in stock, Generally 15-25 working days,it is accordingto quantity.Q6: How long is the quality guarantee period?A6:Our quality guarantee period is 60 months.
