Multipurpose Stand-up Pouch Making Machine for Packaging Solution

Product Description

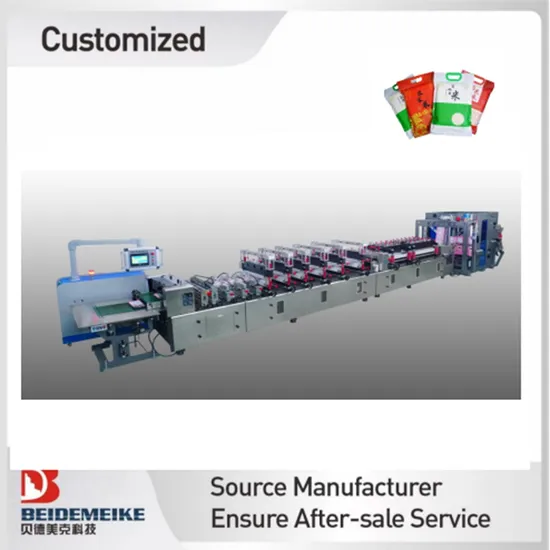

Product Description BM600-1 Three-side-seal Bag Making Machine
Automatic Synchronization and tension control system , PLC automatic routing, operation and control of various logic state, setting barrier impaired diagnostic information systems and machinery management system . nu reeling pneumatic shaft. Horizontal feeding material by servomotor to ensure the accurate feeding length. Horizontal material hot press by type of mechanical movement, to avoid the instability resulting vapor- action,short life of the disadvantages. feeding quickly and smoothly. Sample bags aesthetic appearance. This special bag production equipment is our company main products, our company is the only manufacturer of this equipment for this production in China.
Product Parameters

Material	All kinds of laminated film
material size	Max width 1200mm, Max diameter 800mm
Bag making speed	180 segments per minute (depends on bag type and material)
Bag width	600mmMax
Bag length	50-400mm (skip function for overlength )
Max power consumption	About 39.5KW
dimension	9540*1700*1950mm(L*W*H)

Main Features 1. Suitable for various laminated films
2. All the parameters are displayed in CRT real time. The speed, bag length, temperature,counting, punching and delivery amount of finished products,etc, Can be pre-set.
3. Bag length is controlled by AC doublee servo-system, with super quality and high efficiency.
4. Automatic unwinding tension control and photo-electric deviation rectification
5. Multi-functional punching, automatic collection of cut-off side waste, static electricity removal.

Applications
Our groundbreaking and highly efficient Bag Making machines are extensively employed across the expansive manufacturing industry, providing soft packaging solutions of outstanding quality. Meticulously engineered for a wide range of applications such as ice bags, rice bags, kraft paper food bags, vacuum bags, and dog food bags, these machines deliver exceptional quality and sustainability.

Laminating substrates	Thickness of substrates		Coating substrates	Thickness of substrates
BOPP	12-80μm		BOPP	12-80μm
PETP	8-30μm		PETP	10-30μm
LDPE,LLDPE	20-200μm		LDPE,LLDPE	30-200μm
OPA	12-18μm		OPA	12-18μm
NYLON CAST	20-80μm		NYLON CAST	30-80μm
ALU(Foil)	6.3-40μm		PP CAST	60-150μm
PP CAST	20-150μm		PAPER	40-150gsm
COEX FILM	20-200μm
PAPER	40-150gsm

Kindly be advised that the above-stated data outlines the standard specifications for our machines and is intended for reference only. The material thickness can be finely tuned according to the enhanced power specifications of the solvent-free lamination machine, offering the flexibility of customized adjustments to meet specific packaging requirements. workshop
Elevate your production capabilities with our cutting-edge lamination machine, offering optional features that maximize efficiency: Opt for the refined sophistication with our strip window feature, or embrace the adaptable functionality of a shaped window, allowing you to customize your packaging solutions to perfection. Discover unparalleled quality with our Composite black and white film, meticulously crafted for outstanding durability and exceptional performance.
Packaging & Shipping
Our commitment to excellence extends beyond manufacturing. Once your order is placed, our dedicated factory team works tirelessly, even through the night, ensuring that your machines are meticulously packed and prepared for shipment. The equipment currently being loaded onto the transport vehicle is a 400C multifunctional solvent-free lamination machine, and it's all set for its journey to Vietnam, promising seamless integration and performance.
Exhibition show
Beide Meike proudly took center stage at the illustrious 2023 China Rubber and Plastic Exhibition, (famously known as "Chinplas") in the vibrant hub of Guangdong, where we unveiled our state-of-the-art 500B high-speed and efficient solvent-free laminating machine.We successfully forged strong and promising connections with esteemed customers and distributors from around the globe.

ABOUT US Jiangxi Best Make Technology Machinery Co., Ltd is a production-oriented enterprise specializing in the development and production of soft packaging machinery. Our company has manufactured the only high-efficiency, high-performance, and multi-purpose solvent-less lamination equipment in the world with built-in Rubber Mixer, focusing on various demands in Solvent-less lamination Field of Soft Packaging.So far, the market share of the product has grown at an annual growth rate of 50%, the market covers packaging agglomeration areas both at home and abroad. Through unremitting efforts and innovation, our company has developed a new type of solvent-less lamination equipment with high-speed, multifunctional, Multi-layer. After initial market launch and customer feedback, it has been highly praised in the industry for its high cost-effectiveness and functionality. We warmly welcome domestic and foreign customers to visit our company for inspection and conduct technical exchange!

Opting to collaborate directly with the source manufacturer is undoubtedly your best decision!
1.Offering more competitive pricing: By purchasing directly from the manufacturer, customers bypass intermediaries or distributors, gaining access to more competitive pricing.
2.Delivering expert technical support: Manufacturers typically possess extensive technical expertise and experienced professional teams, ensuring customers receive superior technical support and solutions.
3.Providing tailored customization services: Direct collaboration with clients facilitates product customization to precisely meet individual customer requirements.
4. Accelerated product delivery: Manufacturers generally excel at producing and delivering products swiftly, significantly reducing customer wait times.
5. Enhanced product quality: With stringent quality control systems and advanced production processes, manufacturers ensure superior product quality.
6. Cultivating long-term strategic partnerships: Manufacturers are committed to forging long-term strategic partnerships with clients, attentively addressing customer needs and feedback to provide exceptional services.
