3meter Industrial Gas Indirect Heating Drying Powder Coating Curing Oven

3meter Industrial Gas Indirect Heating Drying Powder Coating Curing Oven

US$9,100.00 1 Piece (MOQ)

Basic Info.

Model NO.
COLO-0813
Drying Method
Heating Drying Method
Classification Performance
Hot Air Circulation Oven
Rated Temperature
100-250 Centi Degree
Air Supply
Circulation
Brand Name
Colo
Coating Type
Powder Coating
Type
Coating Production Line
Place of Origin
Zhejiang, China (Mainland)
Voltage
380V
Weight
750kg
Warranty
12 Month
Substrate
Steel
Power(W)
1.5kw
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
No Packing
Specification
CE
Trademark
colo
Origin
Zhe Jiang China
Production Capacity
100PCS

Product Description

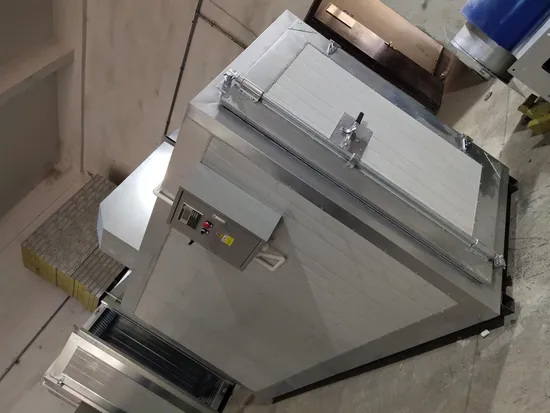

3meter Industrial Gas Indirect Heating Drying Powder Coating Curing Oven Brief of COLO powder coating oven:
with Two opening Door .can make your work more efficiency
Model: COLO-0813Heating Source: by gas/diesel/LPGWorking size: width800 xdepth 3000x height 1500mmApplication: this small gas powder coating oven is suitable for curing thin and long products

Specification of the powder coating oven:
Techinial Specifications
Name: COLO-0813 Gas Powder Coating Oven
Working diamension width800 x depth 3000x height 1500mm
Overall Diamension width1200 x depth 3500 x Height 1800mm
Heating supply: gas
Voltage 380V(50-60Hz)
Heating time 15-30 min(180'C)
Heating Temp. 180-250'C
Burner Italy RIELLO brand.
Circulation/Air Flow vertical
Motor Power 1.5kw
Gas Powder Coating Oven Structure
Item Name Qty
1 Chamber 1 set
2 Fan Motor 1 set
3 Electrical Cabinet 1 set
4 Trolley 1 set
5 Buring room 1 set
6 RIELLO burner 1 set
Drawing
use great 100mm rock wool Products Details
1.long lifespan: indirect heating like gas/diesel/LPG oven, with heating exchange room .will use longer than electrical powder coating oven2. saving energy and cost: firing gas or diesel cost less of energy3. good curing effect on the metal surface. We use good material and components to achieve perfect warm insulated system: 1) inner wall:Galvanized Steel(thickness=1~1.5mm), 2).interlayer: rock wool board(thickness=100~120mm), insulated, maintain the inside temperature3).outer wall: Color Steel(thickness=1-1.5mm), anti-rust4.PLC control system for easy operation You can setting heating time and temperature on the panel. When the heating time arrive, the system will stop automatically.
Shipping Customer Visiting&Exhibition We have went to many exhibitions durning our 11 years running .Also many customers visit our company ,check the goods and discuss to expand our business . Buying Guide
If you are interested in this product ,pls feel free to contact us
Address : No.57 Xiangcang RD,Xihu District,HangZhou city, China
