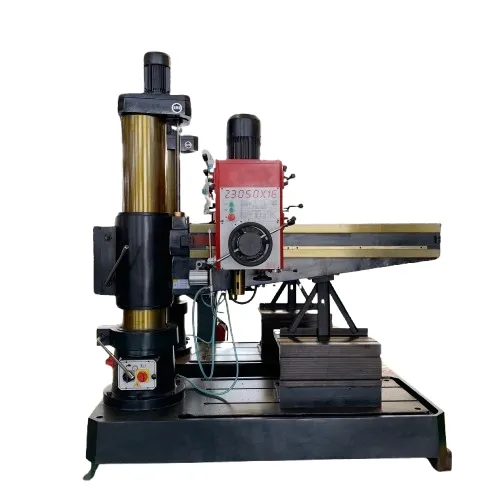

Wholesale Tapping Cutting Machining Reasonable Price Z3050 Swing Arm Drill for Metal

Product Description

Product Description
FEATURE
Hydraulic clamping, hydraulic transmission,hydraulic shifting, hydraulic preselection
1.Surface quenching treatment prolongs the service life ofthe machine
2.Spindle forward and reverse, parking (braking), shifting, neutral five actions, all controlled by one handle, easy to use

3.The clamping or loosening of the spindle box and column can be clamped separately or at the same time,easy to operate

Application
Suitable for drilling, reaming, reaming, countersinking and tapping on large and medium-sized parts.Boring can be carried out under the condition of technological equipment.
1. Large parts
High-strength cast iron is used to improve the rigidity and strength of large parts

2. Lubricating
The interior ofthe headstock, the rocker arm and the column are all automatically lubricated. The rocker arm guide rail, the rocker arm lifting mechanism,etc. adopt manual dynamic lubrication

3. Electric
This machine tool uses three-phase 380V/50Hz AC power supply. The control circuit, lighting
circuit and indicator lights are all powered by the control transformer.

Detailed Photos

Product Parameters

Max. dia. of drilling	50mm
Distance between Spindle face & worktable	320-1220
Spindle taper(Mohs)	MT5
Main axle rotating speed(r.p.m)	25-2000
Spindle speeds series	16
Angle of swing arm	±180°
Range of spindle feeding	0.04-3.2r.p.m
Spindle feeding series	16
Size of worktable(mm)	610*450*360
