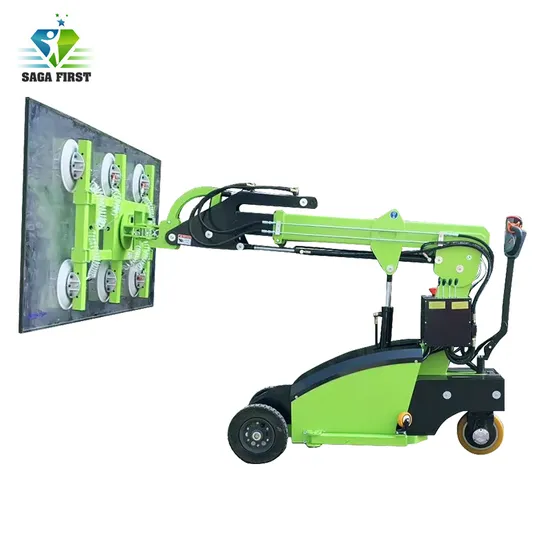

600kg 800kg Electric Glazing Robot Vacuum Suction Cup Glass Lifter for Installing Windows

Product Description

Lifting Heavy Panel Drivable Glass Vacuum Lifter for USA EU Au
(Professional Manufacturer)
Sagafirst Vacuum lifter series are specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble. Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.
Features & Advantages:
- Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.
- DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.
- Attractive price, staff saving, strong improvement of working environment.
- There are 3 models available, GL-LD, GL-HD and GL-FC-6035 suits for different working environments.
GL-LD light duty vacuum lifter, small size, easy to transport.

Model Type		GL-LD-300	GL-LD-400	GL-LD-500	GL-LD-600	GL-LD-800
Load Capacity		300kg (retract) 150kg (extend)	400kg (retract) 200kg (extend)	500kg (retract) 250kg (extend)	600kg (retract) 300kg (extend)	800kg (retract) 400kg (extend)
Lifting Height		3500mm	3500mm	3700mm	3700mm	4500mm
QTY of Suction Cap		4pcs	4pcs	6pcs	6pcs	8pcs
Rubber Suction Cap		Ø300mm	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Maintenance-free Battery		2x12V/80AH	2x12V/100AH	2x12V/120AH	2x12V/120AH	2x12V/120AH
Battery Charger		Smart Charger	Smart Charger	Smart Charger	Smart Charger	Smart Charger
Drive motor		24V/1200W	24V/1200W	24V/1200W	24V/1200W	24V/1200W
Lifting Motor		24V/2000W/6L	24V/2000W/6L	24V/2000W/6L	24V/2000W/6L	24V/2000W/12L
Chassis L*W		2660*810mm	2660*810mm	2800*810mm	2800*810mm	2800*810mm
Driving Wheel		Ø250x80mm	Ø250x80mm	Ø300x100mm	Ø300x100mm	Ø300x125mm
Packing Size(mm)		2560*1030*1700	2560*1030*1700	2580*1050*1700	2580*1050*1700	3000*1250*2300
N.W/G.W		1100/1150kg	1280/1330kg	1300/1350kg	1400/1450kg	1700/1750kg
Loading Qty		1x20GP/40GP: 6SETS/12SETS
Movement	Automatic (4 kinds)	Pad frame vertical up/down 180°automatic Boom in/out TELESCOPIC automatic Powered arm up/down automatic Lateral side shift 100mm automatic
	Manual (2kinds)	Pad frame tilt left/right 90° manual (Pls look at Optional 1. automatic turn lift/right) Pad frame rotation 360°manual (Pls look at Optional 2. automatic rotation 360°)
Usages		Mainly used for handling,moving and installing glass,marble,wooden panel etc.

Description:
Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.
Specifications:
GL-HD heavy duty vacuum lifter, easy to move around,
Description:
Self-propelled drive, Higher lift cap. is available upon request. Electric side shift 100mm both right & left. Electric tilting forwards & backwards from vertical to horizontal or reverse. Suction plate is manual rotating.
Specifications:

Model	GL-HD-4020	GL-HD-6030	GL-HD-8040
Max. Load Cap.	400kgs	600kgs	800kgs
Safe Load Cap.	200kgs	300kgs	400kgs
Lift H.	1500mm	1500mm	1500mm
QNTY of Caps	4	6	8
Cap Diameter	Ø300mm	Ø300mm	Ø300mm
Max. Plate Size	2440x1830mm	2440x1830mm	3660x2440mm
Drive Motor	24V/500W	24V/700W	24V/900W
Hydromatic Motor	24V/2000W	24V/2000W	24V/2000W
Battery	2x12V/70Ah	2x12V/100Ah	2x12V/160Ah
Charger	24V/10A	24V/15A	24V/20A

Certification: CE ROHS ISO TUV SGS
Frequently Asked Questions:
1.How can the customer buy parts once it breaks down?
The aerial aluminum lift platform adopts most of the common parts of hardware. You can buy the parts in your local hardware market.
2.How can the customer repair the aerial aluminum lift platform.
One of the great advantages of the equipment is a very low failure rate. Even it breaks down, we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee. If it breaks down within one year, we can send the parts free of charge to you.
Our Service:
1.We can design the customized aerial aluminum lift platform as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the aerial aluminum lift platform breaks down to help you repair.
6.Parts of aerial aluminum lift platform can be sent to you by express within 7 days if needed.
