Melt Flow Index Tester measure the melt flow rate (MFR) of thermoplastic resin in quality control and research applications

Product Description

Product Description
Product Description

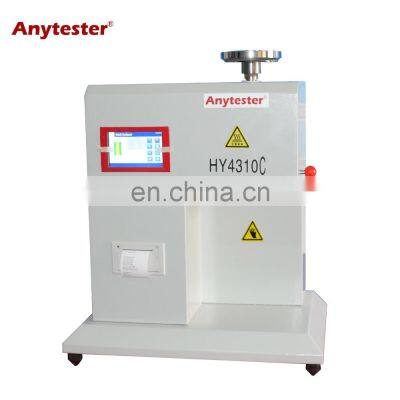

HY4310C Melt Flow Index tester is used to measure the melt flow rate (MFR) of thermoplastic resin in quality control and research applications. It is suitable for PE, nylon, fluoroplastics and other engineering plastics which of higher melt temperature, and also suitable for PE, PP, ABS resin and other plastics which of lower melt temperature.
Specification

Model		HY4310C
Temperature range		120℃~450℃
Temperature error		≤±0.2℃
Temperature resolution		0.1℃
Temperature recovery time		≤4 min
Display mode		Touch screen operation
Test method		MFR
Timing accuracy		0.1s
Cutting mode		Manual & automatic
Standard die		Tungsten carbide, Φ2.095±0.005mm
Height of standard die		8.000±0.020mm
Inner diameter of feed cylinder		Φ9.550±0.025mm
Diameter of piston		Φ9.475±0.015mm
Length of piston head		6.350±0.100mm
Power		AC220V, 50Hz, 450w

Futures
★ Chinese/English operate interface;
★ Simple structure, easy to operate, easy to maintain;
★ Color touch screen control;
★ Professional software to control temperature automatically, automatically cutting material, real time display test curve, mini-printer to printout test data;
★ Can automatically calculate the melt flow rate (MFR) after inputting the mass value;
★ Can store recent 40 groups of test data.
Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Item	T/T	EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance,paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 50,000usd
Delivery Time	7~10 days after receiving payment for one container
