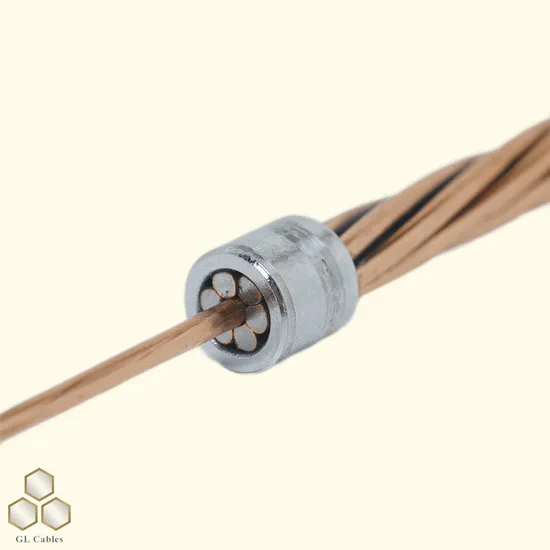

Gelei Cables CCS Copper Clad Steel Stranded Wires Electrical Cable Building Cable Rail Way

Product Description

Product Description
Application
Earth rod for power industry Trolly wire for power transmission Overhead-contact systems for railway Connectors for electronic components Strengthened conductivity wire core for special cable
Advantage
1. Combination of good conductivity,high tensile strength and welding property of copper
2. Highdensity,good extensibility thus saving copper resource and cost
Product Parameters

Specification and Technology date
Section area (mm²)	Diameter of single wire(mm)	Number of strand	Diameter of the entire Strand(mm)	Weight for reference(kg/km)	Electrical conductivity of a single wire(%)
16	1.70	7	5.10	130	14-40
25	2.14	7	6.36	200
35	2.52	7	7.50	280
50	3.00	7	9.0	400
	1.80	19
70	3.50	7	10.0	500
	2.14	19
95	2.52	19	12.6	766
120	2.84	19	14	980
150	3.15	19	15.8	1230
	2.28	37
185	3.52	19	17.5	1520
	2.52	37
240	4.00	19	20.0	1970
	2.88	37
300	3.20	37	22.4	2430
