Automatic Ring Lock Scaffold Top Bracket Welding Tools

Product Description

Product details

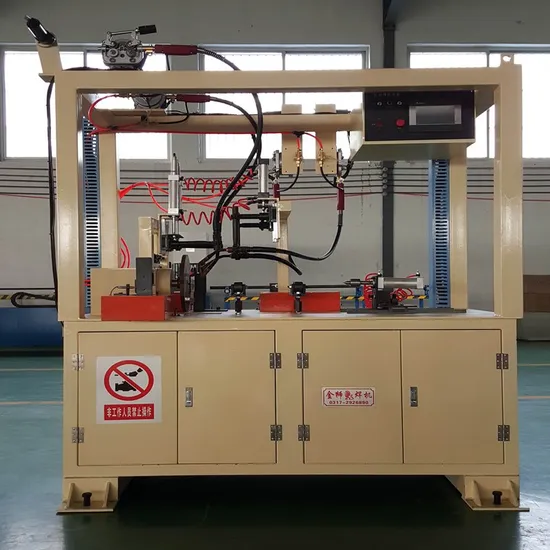

Automatic U-head Jack Scaffolding Welding Machine
The equipment is our patented product, patent number: ZL2016 20453093.8
This equipment is a special welding machine (with reinforcing plate) for the production of building top support, which can realize automatic welding of top support without spot welding. The equipment is equipped with four high-performance welders working at the same time, the workpiece is automatically turned over, welding is completed in one time. Greatly improve the work efficiency.
The equipment is mainly used for: automatic welding of scaffolding top support screw. (No manual spot welding required).
Scope of welding parts applicable: (can be customized according to customer requirements)
1. Lead screw tube length: 0.2-0.8m.
2. Lead screw diameter: Φ38, Φ42, Φ48, Φ60
3. Tray diameter: ≤250MM
4. Reinforcing piece length: ≤80MM
Equipment features:
1. The ideal weld formation reduces the grinding time and waste of welding material, and the weld is uniform and beautiful.
2, PLC+ industrial touch screen, man-machine interface. The components of the control system are imported or well-known domestic brands. The welding speed is stepless and adjustable, the operation is simple and convenient, the working performance is stable and reliable, and the machine, electricity and gas control is integrated.
3, pneumatic clamping workpiece, fast speed, welding gun Angle humanized adjustment, improve the work efficiency.
4, fast welding speed, efficiency than manual welding more than 2 times. Reduced labor intensity. Parameter

Scaffolding types	Jack base
Sample
Voltage	380V
Power(kw)	20
Motor type	stepper motor
Duty cycle	100%
Air pressure adjustment range(MPa)	0.2-0.8
Maximum adapt to the work piece(mm)	1000
Spindle speed(rpm)	0.5-200
The speed of the wire feed (m/min)	2---14
Spindle speed control mode	PLC
Torch adjustment method	Pneumatic
The main dimensions mm (L * W * H)	1.42*0.8*1.65M
Weight	300KG

Company honors and qualifications:
Corporate office area:
With high quality products and excellent reputation, Golden Lion sells well all over the world, helps enterprises solve production problems, helps enterprises develop, and establishes long-term cooperative partnership with well-known enterprises at home and abroad. Your success is the eternal pursuit of Golden Lion welder! Let us hand in hand, sustainable development, create brilliant!
Frequently Asked Questions
If I have some problems, what should I do?
-You can contact our salesman directly, our engineer will check the problem. We Provide proofing service before sale and free technical training, online technical guidance, video guidance
How long is the warranty?
-We offer a 1-year warranty(except for the consumable parts like Lens). The supplier will provide detailed information as soon as possible.
If you need help, we have a professional team to help you.
If you have other mold needs technical instruction and video instruction are also provided.
Packaging&Shipping
1. Cleaning machine.
2. Wrap all the machine and parts with bubble film and plastic film.
3. Forklift the packed machine to the container.
4. Choose the optimal routes and transportation modes according to the distance.
