Top Closed Loading Arm Al1411 Factory Price
| US$1,200.00-2,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AL1411
Condition
New
Customized
Customized
Certification
ISO9001
Tank Marerial
Metal Tank
Type
Middle Pressure Storage & Transportation Equipment
Storage Objects
Liquid, Gas
Color
Light Grey or Customized
Seals
PTFE
Quality Guarantee
1 Year
Application
Truck Tanker, Rail Car, Marine
Accessory One
Quick Coupling, Vacuum Breaker
Accessory Two
Break Away Coupling, Liquid Level Alarm
Transport Package
Pallet or Plywood Case
Specification
DN50, DN80, DN100, DN150
Trademark
LOADARM
Origin
China
HS Code
8428909090
Production Capacity
5000 Sets / Year
Packaging & Delivery
Package Size
6000.00cm * 2300.00cm * 2500.00cm
Package Gross Weight
1200.000kg
Product Description

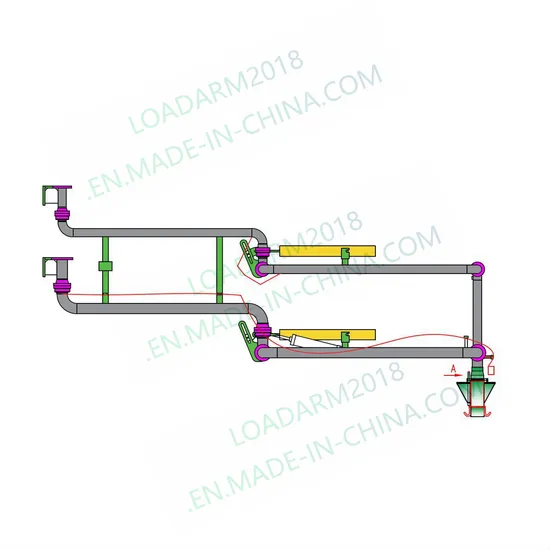

The structure of A1411 land loading arm:Our land loading arm in workshop:
LDCO's loading arm on sit:
General introduction for land loading arm:
Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions.
Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.
By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.
According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.
Basic technical data:
| AL1411 is a typical of closed loading arms. It can be easily operated, installed and maintained and has good vapor recovery ratio. | |
| Places Applied | Closed top loading |
| Applications | Product oil, chemicals, especially for highly valatile and toxic liquids |
| Nominal Diameter | DN50~DN150 (liquid), DN25~DN100(gas) |
| Working Temperature | -196~250ºC |
| Working Pressure | PN1.0~PN4.0 |
| Material of pipeline | Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc. |
