Vertical Wind Turbine, Wind Power 1kw 2kw 3kw 5kw 10kw

Product Description

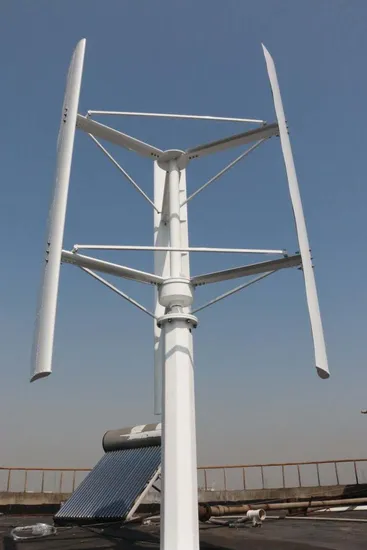

Vertical Wind Turbine, Wind Power 1KW 2KW 3KW

Features: Security. Using the vertical blade and triangular double-fulcrum design, the main force points concentrated in the hub, so blade lose, broken and leaf flying-out and other issues have been a better solved. Noise. The use of horizontal rotation and blade application aircraft wing design, making the noise reduced to an unperceivable level in natural environment. Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a small wind pressure, so that it can withstand 45 m/s super typhoon. Rotation radius. Because of its design structure and special operating principle, it has a smaller radius of rotation than other types of wind turbines, it saves space, while improving efficiency. Power generation curve characteristics. Start wind speed is lower than other types of wind turbines, the power generation increasing rate is relatively gentle, so between 5 to 8 meters wind speed range, it could produce 10% ~ 30% power than other types of wind turbines. Effective wind speed range. special control principle makes its effective wind speed range expened to 2.5 ~ 25m / s, in the maximum use of wind resources, obtain a higher power generation, improve wind power investment economics. Brake device. The blade itself has speed protection, and can configure manual mechanical and electronic brake meantime, in the absence of typhoon and super gust area, manual brake is enough.
Technical parameter:

Model	XTL-V1-500W	XTL-V1-600W	XTL-V1-800W	XTL-V1-1KW	XTL-V1-2KW	XTL-V1-3KW
Rated power	500W	600W	800W	1KW	2KW	3KW
Max power	550W	650W	850W	1.1KW	2.2KW	3.2KW
Nominal voltage	12v24V	12v24V	12v24V48V	24V48V96V	48V96V/120V	48V96V/120V
Start-up wind speed	1.5m/s	1.5m/s	1.5m/s	1.5m/s	1.5m/s	1.5m/s
Rated wind speed	13m/s	13m/s	13m/s	13m/s	13m/s	13m/s
Survival wind speed	45m/s	45m/s	45m/s	45m/s	45m/s	45m/s
Top net weight	KG	KG	KG	KG	KG	KG
Wind wheel diameter	500mm	550mm	550mm	650mm	800mm	850mm
Blade Height	1.1m	1.2 m	1.3 m	1.5m	2m	2.28m
Number of blades	2
Blades material	Reinforced glass steel and carbon fiber
Fuselage material	8A3
Generator	/ Three phase ac permanent magnet generator/Maglev generators
Control System	electric eddy brake
Yaw Mode	The wind Angle automatically
Lubrication mode	self-lubricating
Tower form	/
Working temperature	-40ºC-80ºC
