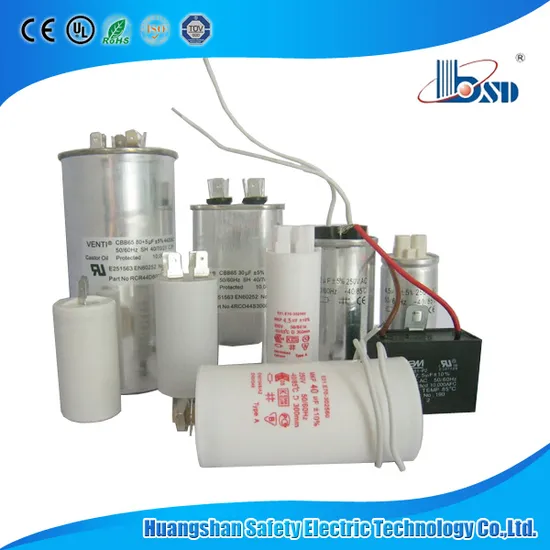

Motor Run and Start Capacitors, UL, VDE, CE, RoHS, Certificate
| US$0.12-0.85 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
CBB60
Packaging Type
Surface Mount
Capacitance
1-120UF
Structure
Fixed Capacitor
Manufacturing Material
Polypropylene
Electrolyte
Electric Heating
Usage
Low Frequency Coupling
Tuning
Polystyrene Capacitor
Filter
Paper Capacitor
Certificate
UL, CE, RoHS, ISO9001, IEC60252
Life Time
30000hours and 10000 Hours
Bady Material
Plastic Can or Al Can
Termianl
Cable Wire Leading and Fasten-on Terminals
Service
OEM and ODM Service
Warranty Time
3 Years
Transport Package
Standard Export Packing
Specification
IEC
Trademark
BSD
Origin
China
HS Code
85322590
Production Capacity
100000PCS/Month
Product Description
Motor run capacitor series (CBB60)
1 Main Feature
Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.
2 Applications
Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.
3 Manufacturing
Self-healing metallized polypropylene film capacitors
Non inductive winding.
Wound capacitor elements fully immersed into resin.
Self-extinguishing plastic case.
Execulions:
Flat bottom-metal fixing stud M8×1 2
faston terminals 0.8×6.35 simple or double
standard distance p=13.2mm±0.5
unipolar cable-bipolar cable
discharge resistance-Dlaslic cover
4 Techinnical Parameters
| Capacitance range | 1-120μf |
| Rated voltage Un | 250v.ac/400/450V.ac |
| Rated frequency | 50Hz;60Hz |
| Capacitance tolerance | ±5%;±10% |
| Climatic category | -25+70ºC |
| Dissipation factor(at 50Hz-Hz and 20ºC) | ≤0.002(100Hz,20ºC) |
| Test voltage between terminals | 2×Un for 3s |
| Test voltage between terminals and case | 2×Un+1000VDC FOR 2s |
| Reference standard | EN 60252-1:2001;IEC252 |
| Capacitance(μf) | 250 V. ac-450 V. ac ΦD×H(mm) |
| 3μf | 25×57 |
| 3.5μf | 25×57 |
| 4μf | 25×57 |
| 4.5μf | 32×55 |
| 5μf | 32×55 |
| 6μf | 32×55 |
| 8μf | 32×55 |
| 10μf | 36×58 |
| 12μf | 36×70 |
| 15μf | 40×70 |
| 16μf | 40×70 |
| 18μf | 40×70 |
| 20μf | 40×70 |
| 21μf | 40×70 |
| 22μf | 40×70 |
| 25μf | 45×70 |
| 30μf | 45× 92 |
| 31.5μf | 45× 92 |
| 35μf | 45× 92 |
| 36μf | 45× 92 |
| 40μf | 45× 92 |
| 45μf | 50×92 |
| 47μf | 50×92 |
| 50μf | 50×92 |
| 55μf | 50×117 |
| 60μf | 50×117 |
| 65μf | 50×117 |
| 70μf | 55×120 |
| 75μf | 55×120 |
| 80μf | 60×120 |
| 85μf | 60×120 |
| 90μf | 60×120 |
| 95μf | 60×120 |
| 100μf | 60×120 |
