China Factory Supplied Top Quality 6000W CNC Fiber Laser Cutting Machine for Different Metal Fiber Laser Cutting

Product Description

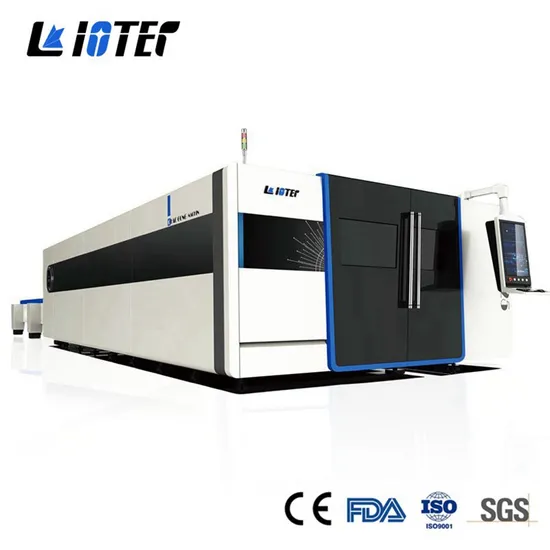

ITE-P series fiber laser metal cutting machine 1530 Machine foto
Samples
Why choose us
1. 3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
2. Free training to make sure you master the operating of machine at our factory.
3. 24 hours online services through Whatsapp, Skype, Email or on the phone.
4. Friendly English version manual and operation video CD disk.
5. Contact me at any time if you have any questions about the machine.
6. Engineers available for overseas training and after-sale services.
Our technical will come to your workshop if the problems can not be fixed through internet or phone communi-cations.
Product Parameters
Specification

Model	ITE-P
Working area (L*W)	3000*1500mm / 4000*2000mm/6000*1500mm (customizable)
Laser power	1000W / 1500W / 2000W / 3000W/4000W/6000W/8000W
Laser source	Raycus/MAXIPHOTONICS/ IPG
Laser head	Raytools laser head
Software	Cypcut
Transmission way	Imported ball screw
Rack and Gear	YYC from TAIWAN
Table-driven system	Japanese Yascawa Servo motor & Driver
positioning accuracy	±0.03mm
repositioning accuracy	±0.02mm
Cutting speed	0-140m/min
Laser wavelength	1070nm
Minimum line width	≤0.1mm
Supporting Format	PLT, DXF, BMP, AI
Max. accelerated speed	2G

Features
Laser source:
Three brands are available according to your needs.
Raycus, or Maxiphotonics, or IPG
Laser cutting head:
Raytools ,or Precitec optional
Raytools fiber laser cutting head with anti-crash function,good sealed,high pressure resistant. Auto-tracking system and anti-crash and stop system can protect good cutting quality and longer the life of lens.
The new generation of Precitec Light Cutter family is designed for cutting applications in the medium power range up to 4 kW and is characterized by a high cutting quality for all metals - especially mild steel, stainless steel and aluminum.

CypCut system:
User-friendly,
high precision,
intelligent layout,
stable and reliable.

Machine body
We employ a welding process for the overall assembly with chamfered edges. After completing the full welding, we subject the assembly to heat treatment for precise refinement. This approach guarantees that the accuracy of the product remains unchanged and free from deformation for a period of 30 years.
The implementation of an intelligent partition ventilation system within the bed frame enhances work efficiency, improves the working environment, reduces equipment maintenance costs, and is environmentally friendly.

Yaskawa motors
Yaskawa motors have the advantages of high performance, high efficiency, high precision, high reliability and high adaptability
The aluminum casting used in aviation materials
The aluminum casting used in aviation materials exhibits excellent cutting performance, lightweight design, strong corrosion resistance, high malleability, and efficient performance.


Industries appliacations

How to choose the fiber laser cutting machine that best suits your needs?

When choosing the most suitable fiber laser cutting machine for your needs, several aspects need to be considered to ensure that your investment aligns with your requirements and expectations. Here are some key considerations:
1,Power and Cutting Capacity: The power of a fiber laser cutting machine directly influences its cutting capacity. Choose a machine with an appropriate power level based on your application needs. In general, high power is suitable for cutting thick materials, while low power is suitable for thin materials.
2,Cutting Speed: Different machine models may have varying cutting speeds. Understanding the cutting speed is crucial for your production efficiency. Higher cutting speeds can enhance productivity but may also impact cutting quality.
3,Worktable Size: Ensure that the machine's worktable size is sufficient to accommodate the typical size of materials you work with. Consider future needs in case you may need to process larger workpieces.
4,Automation Features: Some fiber laser cutting machines come with automation features such as an automatic tool-changing system, automatic loading and unloading systems. These features can improve production efficiency and reduce the labor intensity of operators.
5,Cutting Quality: Pay attention to the cutting quality of the machine, especially concerning your application. Some machines may sacrifice cutting quality at high speeds, and for applications requiring high-quality cutting, you may need to trade off some speed to maintain cutting quality.
6,Consumable Costs: Consider the costs of consumables such as cutting tools and other supplies. Some machines may have higher initial costs but lower consumable costs over their lifespan.
7,Manufacturer Reputation and Support: Choose a manufacturer with a good reputation that provides reliable after-sales service and support. This is crucial for ensuring the machine's reliability and effective troubleshooting.
8,Safety Features: Ensure that the selected machine complies with local safety regulations and has necessary safety features to prevent accidents.,
9,User Interface and Ease of Use: An intuitive and user-friendly interface can reduce training time and enhance operational efficiency.
10,Cost: Consider the overall cost of the machine, including the purchase cost, operating costs, and maintenance costs. Focus not only on the initial investment but also on the overall cost-effectiveness of the machine.
When selecting a fiber laser cutting machine, it's advisable to first understand your specific requirements and compare different models to ensure you choose a device that best suits your application.
ITE Laser will help you to choose a more suitable and more prefesional fiber laser cutting machine!
