Corrugated Flexible Steel Hose Making Machine

Product Description

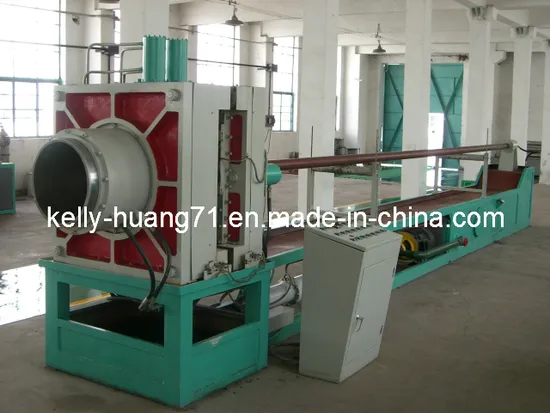

Corrugated flexible steel hose making machine
Machine Description
Forming Method:Hydraulic Forming
Forming Medium: Emulsified Liquid
Wall thickness:0.3-2mm
Application: making bellows and hoses(exhaust bellows for automobile)
Structure: double or single layer
Size available:DN32- DN630mm
Available length: 2-8meters
Forming speed:4-28seconds/convolution
Control: PLC control
Length: 7500mm
Material of hose: SS304, 321, 316L
Forming Details
Main Features
A. DN32-150mm Hydraulic metal hose forming machine
Size range:DN32-DN150
Wall thickness:0.3-0.6mm
Width of strip:100-471mm
Height of convolution:7-15mm
Pitch distance:5-15mm
B. DN50-300mm Hydraulic metal hose forming machine
Size range:DN50-DN300
Wall thickness:0.3-0.8mm
Width of strip:158-944mm
Height of convolution:9-35mm
Pitch distance:9-30mm
Related machines
A. DN12-150 Tube mill machine
Size range:DN12-150
Wall thickness:0.15-0.35mm
Control:Inverter control
Welding speed:250M/HR
Tube length:No limited
B. DN50-300 Tube mill machine
Size range:DN50-30
Wall thickness:0.2-0.4mm
Control:Inverter control
Welding speed:250M/HR
Tube length:No limited
C. Wire braiding machine
Wire diameter:0.3mm to 0.8mm
No.of spindles:16 to 128 spindle braiding machine
ID of the braids:4mm to 600mm
Material of wires:stainless steel,galvanized carbon steel, copper wire
D. Testing bench for big diameter hose

Packing & Delivery
Package details: Standard seaworthy package for metal hose hydro forming machine
Delivery details: 30 days after your advance payment
Our Company
Wuxi Longterm Machinery Technologies CO., LTD
We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines,such as elastomer hose forming machine, hydraulic forming machine,wire braiding machine, rewinding machine,bellow forming machine, etc..We are lead manufacturer of flex-related products in China.
We supply metal hose and braid with the widest selection of products ranging from braided hose for value oriented customers to super flexible hoses to ultra-high pressure and high temperature hoses that satisfy industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety and environmental standards and deliver dependable, repeatable performance and value.
Our Customer
We are professional manufacturer of flexible hose forming machine, we have experience in this field over 25 years, our machines are widely exported to many countries, such as American, Russia, Ukraine and Canada, etc...We welcome you to visit our factory.
FAQ
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience.
Q: What size can you make?
A: All the sizes from DN8 up to DN600mm can be made on different machines
Q: How many different types of machine can you make?
A: Hydro metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
