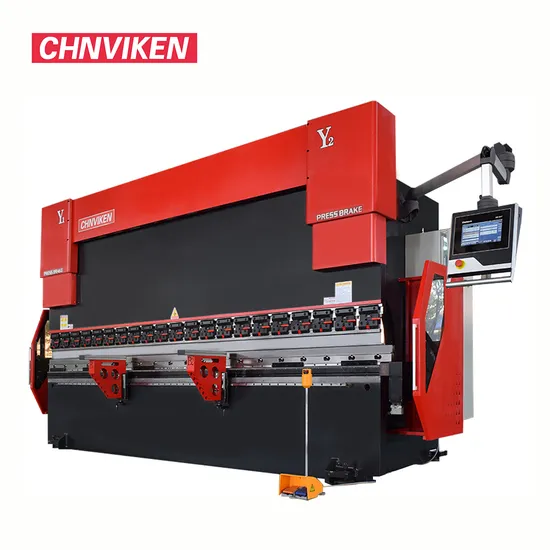

160t3200 Hydraulic CNC Press Brake with Da53t and Manual Lift Backgauge Fingers
Basic Info.
Model NO.
press brake
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Weight (Kg)
7500
Machine Type
Torsion Bar
Depth of Throat: 320mm
Distance Between Housings: 2600mm
Showroom Location
Egypt, Canada, UAE, Australia, None
Warranty of Core Components
2 Years
Video Outgoing-Inspection
Provided
Raw Material
Sheet Metal & Steel Plate
Max Bending Width:3200mm
Motor Power (Kw):7.5
Marketing Type
New Product 2024
Key Selling Points
Automatic
Year
2024
Max Opening Height:380mm
Slider Stroke:120mm
Model:We67K-100t/3200
Bending Pressure:1000kN
Power
Hydraulic
Machinery Test Report
Provided
Transport Package
Plywood Box
Trademark
CHNVIKEN
Origin
Anhui, China
Product Description
| Bending Capability | 80/3200 | 100/3200 | 100/4000 | 125/3200 | 125/4000 | 160/3200 | 160/4000 |
| Nominal Force(KN) | 800 | 1000 | 1000 | 1250 | 1250 | 1600 | 1600 |
| Worktable Length(mm) | 3200 | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 |
| Column Distance(mm) | 2650 | 2610 | 3100 | 2610 | 3100 | 2600 | 3050 |
| Throat Depth(mm) | 250 | 320 | 320 | 320 | 320 | 320 | 320 |
| Ram Stroke(mm) | 120 | 120 | 120 | 120 | 120 | 180 | 180 |
| Main Motor Power(KW) | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 |
| No. | Component Name | Details |
| 1 | Controller | DELEM DA53T |
| 2 | Main Motor | Siemens Main Motor |
| 3 | Hydraulic system | RexRoth, Germany |
| 4 | Oil pump | Sunny, America |
| 5 | Electrical components | Schneider, France |
| 6 | Servo motor and driver | Estun, China Nanjing |
| 7 | Grating ruler | GIVI, Italy |
| 8 | Ball screw linear guide rail | HIWIN, China Taiwan |
| 9 | Hydro-cylinder | VIKEN |
| 10 | Bear | NSK, China Shanghai |
| 11 | Punch and Die | 42CrMo Material |
