Paddy Field Boat Tractor Paddy Field Farm Boat Tractor for Rice Field Cultivation
| US$2,750.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AM-15B
Application Field
Agriculture
Farming Policy
Paddy Field Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Self Propelled
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
ISO
Color
Blue
Warranty
1 Year
Name
Boat Tractor
Power
15-28HP
Implements
Rotary Tiller, Disc Plough, Roller
Work Width
70-120cm
Gear
6 Forward,2 Reverse
Weight
630kg
Volume
4.5cbm
Advantage
for Dry and Water Land
Transport Package
Iron Crate
Specification
2.5*1.5*1.2m
Trademark
no
Origin
China
HS Code
6876798
Production Capacity
50000
Product Description

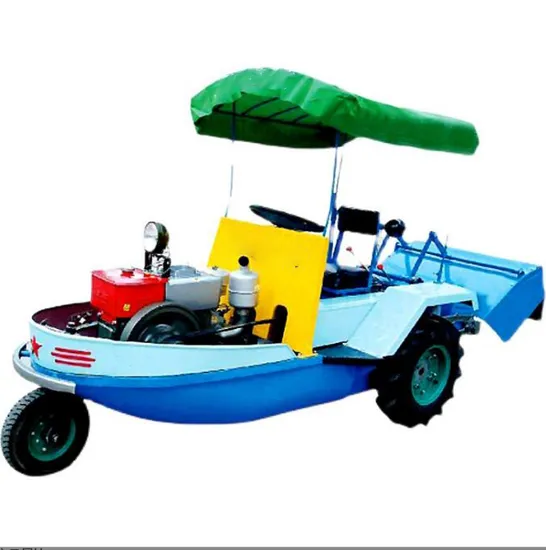

paddy field boat tractor paddy field farm boat tractor for rice field cultivationThis boat tractor is a kind of agricultural machinery mainly used for tillage rice field, lotus root and other fields. This machine can work for both dry and wet/water land.
Mainly composed of diesel engine, gear box, clutch, guide wheel, direction machine, control system, lighting device, hull etc.
Specification
| Model | AM-15B |
| type | Boat tractor |
| power | 15-18hp manual start diesel engine 22-28hp electric start diesel engine |
| dimension | 3300*1300*1250mm |
| Wheel tread | 1100mm |
| Wheel base | 1920mm |
| weight | 630kg |
| Min. Ground clearance | 170mm |
| Work speed 6 forward gear, 2 reverse gear | Forward: 1.89; 3.35; 5.36; 6.98; 12.38; 20.76 Reverse: 1.49; 5.56 |
| Tyre size | Front 400-8, 0.2-0.4MPa Rear 600-12, 0.18-1.2MPa |
| Rotary tiller Work width | 15-18hp, 70cm 22-28hp, 120cm |
| Gear box | Gear transmission (3+1)x2 |
| Optional implements | disc plough, roller, fertilizer spreader |
| Pack volume | 4.5CBM |
