Digital Profile Projector with Vertical Optical Path and Double Steel Guide

Product Description

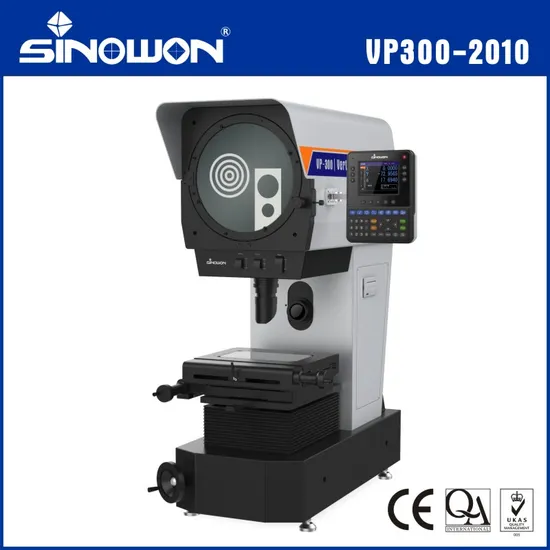

Sinowon Digital Profile Projector Vertical Optical Path Double Steel Guide
A profile projector is an optical measuring instrument that directs light at an object on its stage and employs lenses to display an enlarged image of the object on a screen, enabling the user to measure its dimensions and check its shape.
Since the profile projector is a device for measuring the dimensions of an object, it must accurately enlarge the shape of the object image. Hence, distortion in the projection lens must be minimized as much as possible. Since the exact size of the object needs to be established by measuring the enlarged image, the projection magnification must also be extremely accurate. Moreover, as the lens produces a much larger image than that produced by the lenses of a microscope or a camera, the degree of difficulty involved in the design of the lens is all the greater.
Product Features:
Vertical optical path with Ø300mm glass screen;
Double steel guide for stage lifting focus system;
Adjustable halogen profile and surface illumination;
Color Touch screen digital readout DP400;
Standard Built-in Thermal Mini-printer;
Available 10X,20X,50X,100X objective, rotary table, etc.
Objective Lens:

Objective Lens	10X(Std.)	20X(Opt.)	50X(Opt.)
Field of View	Φ30mm	Φ15mm	Φ6mm
Working Distance	80mm	67.7mm	51.4mm

Technical Specifications:

Commodity	Ø300mm Digital Vertical Profile Projector
Reverse Image	VP300-2010 (#511-340)
Obverse Image	VP300-2010Z(#511-340Z)
Metal Stage Size	258x358mm
Glass Stage Size	148x256mm
Stage Travel Range	200x100mm
Product Dimension(L×W×H)	988x563x1157mm
Packing Dimension(L×W×H)	1200x800x1500mm
Focusing Range	90mm
Instrument Accuracy	≤3+L/200(um)
Sales Resolution	0.0005mm
Load Capacity	10Kg
Projector Screen	Diameter: φ312mm, Measurement Range ≥ Ø300
	Rotation Angle 0~360° ;Resolution: 1 or 0.01°,Accuracy 6'
Digital Readout	DP400 Multifunction colorful LCD digital readout
Illumination	Contour Illumination:3.2V/10W LED Surface Illumination:3.2V/10W LED
Working Environment	Temp 20ºC±5ºC,Humidity 40%-70%RH
Power Supply	AC110V/60Hz; 220V/50Hz,150W
Cold-air Blowing System	3-axis Powerful Fan
Gross/Net Weight	240/180kg
