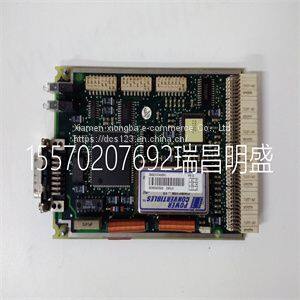

Module spare parts CS513 3BSE000435R1

Product Details

Product Description

Product Description
Focus on DCS, PLC, robot control system and large servo system.
Main products: various modules / cards, controllers, touch screens, servo drivers.
Advantages: supply of imported original products, professional production parts,
Fast delivery, accurate delivery time,
The main brands include ABB Bailey, Ge / fuanc, Foxboro, Invensys Triconex, Bently, A-B Rockwell, Emerson, ovation, Motorola, xyvom, Honeywell, Rexroth, KUKA, Ni, Deif, Yokogawa, Woodward, Ryan, Schneider, Yaskawa, Moog, prosoft and other brands

CS-1000 UTX1700PTFE

Contents of this chapter This chapter gives basic information about the manual and the terms used in the manual. Contents of the manual This manual contains a description of the use and structure of the control unit and its technical data. It also describes how to install and maintain the control unit. Safety WARNING! Obey the safety instructions given in ACS880 multidrive cabinets and modules safety instructions (3AUA0000102301 [English]), or ACS880 liquidcooled multidrive cabinets and modules safety instructions (3AXD50000048633 [English]), or ACS880-04XT drive modules (500 to 1200 kW) hardware manual (3AXD50000025169 [English]). If you ignore the safety instructions, injury or death can occur. If you are not a qualified electrician, do not do electrical work. 8 Introduction to the manual Terms and abbreviations Later in this manual, the term converter replaces terms drive, converter, and inverter. Term Description BCU Type of control unit Drive Frequency converter for controlling AC motors FSO-xx FSO-12 or FSO-21 safety functions module Inverter Converts direct current and voltage to alternating current and voltage LED Light-emitting diode RDCO DDCS communication module SD card Secure digital memory card SDHC card Secure digital high capacity memory card STO Safe torque off (IEC/EN 61800-5-2) Hardware description 9 2 Hardware description Contents of this chapter This chapter gives information about the hardware of the control units. Hardware description The BCU-02, BCU-12 and BCU-22 are control units used for controlling converters via fiber optic links. They contain integrated branching unit functionality for collecting and storing real-time data from the converter modules to help fault tracing and analysis. The data is stored on the SDHC memory card inserted into the SD CARD slot and can be analyzed by ABB service personnel. The control unit types have a different number of fiber optic connections: The control unit requires an external 24 V DC power source. It has three option slots for I/O extensions, encoders and fieldbus adapters, and a removable memory unit. For example, if you need to replace the control unit, you can keep the parameter settings by moving the memory unit from the defective control unit to the new one. The drive-to-drive link (XD2D) is a daisy-chained RS-485 transmission line that allows basic master/follower communication with one master and multiple followers. The control unit also has one option slot for connecting a RDCO DDCS communication option board. For more information, see the RDCO-0x DDCS communication option modules user's manual (3AFE64492209 [English]). BCU type No. of fiber optic connections Can be replaced with BCU-02 2 BCU-02, BCU-12, BCU-22 BCU-12 7 BCU-12, BCU-22 BCU-22 12 BCU-22e manuals ACS880-04 single drive module packages hardware manual 3AUA0000138495 ACS880-04XT drive modules (500 to 1200 kW) hardware manual 3AXD50000025169 ACS880-14 and -34 single drive module packages hardware manual 3AXD50000022021 Option manuals FSO-12 safety functions module user's manual 3AXD50000015612 FSO-21 safety functions module user’s manual 3AXD50000015614 FDPI-02 diagnostics and panel interface user’s manual 3AUA0000113618
