Efficient Panel Cladding Equipment for High-Quality Wall Decoration

Product Description

Product Description

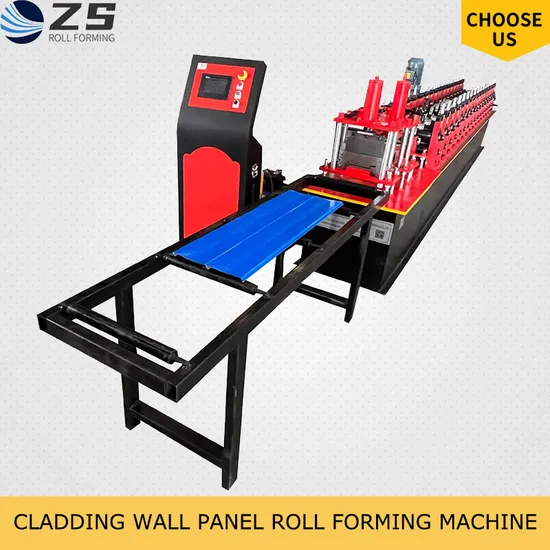

Exterior Wall Decoration Cladding Panel Selflock Making Roll Forming MachineIntroducing our versatile and state-of-the-art machine, designed to effortlessly meet all your panel cladding needs. This powerhouse not only handles rolling holes on various surfaces but also punches side holes with precision. With just one machine, you can seamlessly switch between two different sizes by adjusting the space and cutting blade-no additional adjustments required.

Profiles:
Tailored to Perfection: We offer customization options to align perfectly with your unique designs and specific requirements.
Roll Forming Machine Components:

No.	Name	Qty
1	De-coiler	1 Set
2	Forming Machine	1 Set
3	Hydraulic Cutting Device	1 Set
4	PLC Control Box	1 Set
5	Hydraulic Pump Station	1 Set
6	Production Support Table	1 Set

Working Flow:
Uncoiler ----- Feeder ----- Rolling Holes ----- Roll Forming ----- Punching Holes ----- Automatic Control System----- Automatic Cutting System ----- Products Receiving Tables
Detailed Photos
Feeder System:
Our feeder system is engineered with the latest design innovations to deliver optimal performance.Ensures stable operation with zero coil swing.Effortlessly adjustable for maximum convenience.Working width: Up to 600mm
Main Roll Forming System:
Forming Machine Structure: Built from high-strength casting steel, ensuring superior durability and consistent performance.Roller: Precision-crafted from Cr12 material, offering unmatched accuracy.Shaft: Constructed from 45# steel with a diameter of 70mm.Motor Power: 5.5kW, customizable to meet specific design needs.
Roller Details:
Achieve unparalleled precision with our rollers, meticulously processed with CNC-center technology for perfect results every time.
Hydraulic Punching & Cutting System:
Operating Model: Standard Hydraulic CutterCutter Blade Material: Premium Cr12
Punching System: Program settings allow for customizable side hole configurations.
PLC Control System:
PLC Brand: Trusted Delta
Touch Screen: Intuitive Delta interface
Designed for user-friendly operation, simplifying complex tasks.
Order No. 20
Hydraulic Oil Pump System:
Equipped with an efficient fan cooling system.
Power: 4kW for robust performance
Gear pump for reliable operation
PLC Control System
Automated management of quantity and cutting length for precision production.
Easily input production data (batch, pieces, length, etc.) on the touch screen to fully automate the production process.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand) Or Delta(Taiwan brand)
Inverter	Siemens (German brand) Or Delta(Taiwan brand)
7-Inch Color Touch Screen	Siemens (German brand) Or Delta(Taiwan brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens (German brand) Or Delta(Taiwan brand)
Air Switch	LG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24V

After-Sale Service:
1. Warranty period is18months from the date the client receives the machine.
Within these 24 months, we will send replacement parts to the client at no additional cost.
2. We offer lifetime technical support for all our machines.
3. At an additional cost, our skilled technicians can be dispatched to your location for installation and worker training.
Terms of Trade:

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style:

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

Our Advantages:
