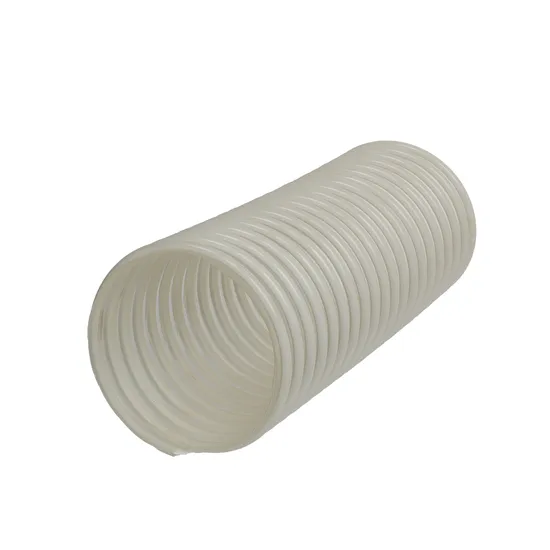

3 Inch PU Spiral Suction Flexible Hose Polyurethane Tubes

Product Description

Product Name
PU Polyurethane Wear Resistant Hose
Product Description
PU wear resistant hose
Temperature range: -35°ºC+90°ºC (up to 120°ºC in a short time)
Specification: 25-305mm (special models can be customized)
Color: translucent with hard spiral reinforcement
Characteristics: Polyether polyurethane hose with shockproof hard spiral reinforcement.
Application scope: transmission of heavy abrasive materials in food processing industry, sanitation industry, ceramic industry, and mining industry.
Polyurethane material wear-resistant plastic rib spiral reinforced hose. The inner wall is completely smooth so that the material is in the hose
The flow is smooth. Has extraordinary anti-wear properties. It can maintain good softness even in a very low temperature environment. Since it does not contain phthalic acid and does not use metal reinforcement
The hose can be used safely in the food industry and sanitation industry.
Can use standard operations Program disinfection.
Suitable for food processing industry, hygiene industry, ceramic industry, mining industry
Transmission of medium and heavy abrasive materials. Can meet high abrasion resistance, high firmness and high softness
Requirements for use.
Product Parameters

Name	PU polyurethane wear resistant hose
Material	PU olyurethane, PC rib
Size	25mm to 305mm(1inch to 12inch)
Wall Thickness	0.6mm-2.0mm
Length	10,15,.20 meters/piece (length, wall thickness, color can be customized)
Structure	The shape is threaded, with good flexibility, and it is made of special materials.
Temperature Range	-35ºC+90ºC (up to 120ºC in a short time)
Color	yellow, orange, transparent, blue, black
Enhanced Layer	plastic reinforcement
Features	Polyether polyurethane hose with shockproof hard spiral reinforcement
Applications	Food processing industry, hygiene industry, ceramic industry, mining industry in the transmission of heavy abrasive materials
Polyurethane material wear-resistant plastic rib spiral reinforced hose. The inner wall is completely smooth so that the material flows smoothly in the hose. Has extraordinary anti-wear properties. It can maintain good softness even in a very low temperature environment. Because it does not contain phthalic acid and does not use metal reinforcing ribs, the hose can be used safely in the food industry and sanitation industry. It can be disinfected using standard operating procedures. It is suitable for the transportation of heavy abrasive materials in the food processing industry, sanitary industry, ceramic industry, and mining industry. It can meet the requirements of high wear resistance, high firmness and high softness.

I.D	O.D	recommended operating limits(1bar=1.0204kg)		weight	production size
		overpressure	vacuum
mm	mm	bar	bar	kg/M	meter(M)
16	22	7.5	1.275	0.15	10,20,30
25	31	7.5	1.275	0.16	10,20,30
32	37	6	1.275	0.17	10,20,30
38	48	6	1.275	0.18	10,20,30
50	58	6	1.2	0.18	10,20,30
63	71	6	1.2	0.29	10,20,30
75	83	5.4	1.05	0.34	10,20
100	108	5.4	1.05	0.52	10,20
125	133	2.25	0.9	0.63	10
150	158	2.25	0.8	0.76	10
203	212	2	0.72	1.02	10
228	237	1.9	0.65	1.15	10
254	263	1.8	0.56	1.27	10
280	289	1.65	0.47	1.40	10
300	315	1.1	0.36	1.52	10
