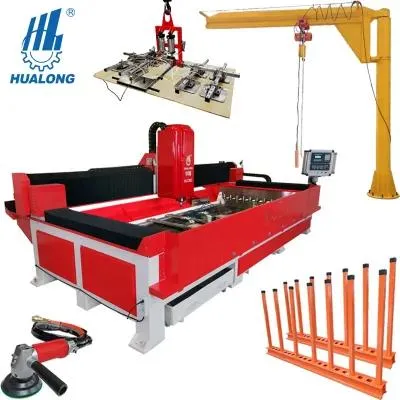

Hualong Machinery 3 Axis CNC Stone Processing Machine Slab Edge Polishing Center CNC Stone Milling Machine Sink Cutter Hlcnc 3319

Product Description

CNC Stone Processing Center
HLCNC-3319/1308 is a CNC milling centre designed for contouring, cutting and turning with three interpolated axis offering users the possibility of multiple and complex machining operations which would otherwise require several machines. It's suitable for processing all kind of stone slab coutertop, such as kithen countertop, bath countertop, cabinet countertop, bar counter, table, windowsill, door sets etc. Relief engraving like stone background wall relief, European style edging etc. is available too.

TECHNICAL DATA
Model Number		HLCNC-3015	HLCNC-3319	HLCNC-1308
Stroke (X-axis)	mm	3040	3500	1340
Stroke (Y-axis)	mm	1540	1950	840
Stroke (Z-axis)	mm	320	320	320
Power of motor	kw	7.5	7.5	7.5
Rotating speed	rpm	0-8000	0-8000	0-24000
Tool holder model	BT	40	40	40
Tool-store position	nr	12	20	11
Workbench dimension	mm	3000x1500	3300x1900	1300x800
Gross Weight	kg	4000	5000	2500
Demension (L x W x H)	cm		553x320x230

Main Features
1) Powered by numerical control planning and interfaced with our CAD / CAM software, their automatic tools allow for calibration, milling, carving, honing and polishing slabs continuously and automatically in one go.
2) Bilateral tools-store with 20 stations for automatic tool change3 axis Yaskawa servo driver, high speed, high efficiency,fine cutting without serrated ripple,smooth bottom plane,clear outline..
3) Crossbeam and carling adopt Taiwan's Hiwin linear guide to move, which ensure high precision of cutting and long life.
4) 3 axis Yaskawa servo driver,high speed, high efficiency,fine cutting without serrated ripple,smooth bottom plane,clear outline.
5) With vacuum cups and aluminum alloy lock to double holding the working pieces, avoiding even little displacement
6) Equipped with USB interface for operator to input and output program conveniently.
7) High speed and low noise.
8) High efficiency and low processing cost.

Detailed Images
Control Console

Brand: Syntec -- Original: Taiwan, China
ESA (Optional) -- Original: Italy
mounted on a swing arm and equiped with a touch-screen colour monitor. Friendly user interface and mature application software make daily management easy
Hand-wheel
wired to the control console, to duplicate the axis mangement, controlling the movement speed and position directly. It allows the operator to be close to the piece to be machined thus controlling directly some delicately.

Machine Parts
Name: Laser reticule apparatus
Original: China
Aid for caliberating the original working point at the beginning

Linear Guide
Brand: Hiwin
Original: Taiwan, China
Famous product, top quality use on crossbeam and carling for good performance.


Electrical Companents

Brand: Siemens, Schneider etc.
Quality electrical companents used to ensure stable performance.

All electrical components are housed and wired in an electrical cabinet.This allows for easy access and service when needed. All wiring is labeled so that customers can easily browse the cabinet when they need service

Vacuum Pump

The machine comes with a 7.5kw vacuum pump for the sucking the stone, it is powerful enough for suck the machine on the table.


Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.
