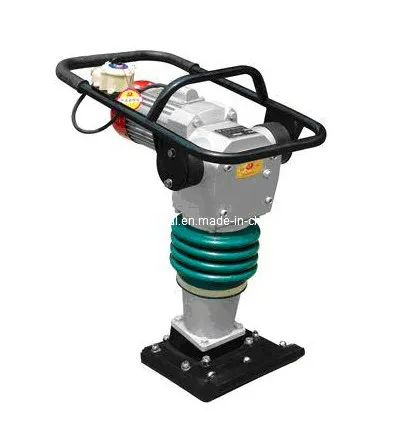

Hcd80 Tamping Rammer with Electric Engine/ Electric Tamper

Product Description

HCD80 Tamping rammer with electric engine
Tamping rammer is widely used in the embankment of the highway, municipal, railway engineering, compaction and maintenance of the slope, and can also be used for bridges, reservoirs, dams engineering foundation compaction, as well as the construction of trenches, culverts, indoor courtyard and narrow ground. Not only compacted sand, gravel, clay, and also asphalt pavement compaction.
Features and advantages:
1 stroke adjustable compaction of soil and asphalt pavement.
2 large enclosed air filter system, easy to clean, the engine to be easily damaged.
3, the specially designed silencer cover can reduce the noise generated by the engine and a bottom plate to pass operating personnel.
4, the damping guide handle can reduce operator fatigue.
5, ductile iron base plate has a longer life.
6, hermetically sealed, splash lubrication impact system to ensure reliable lubrication parts.
ModelHCR80K Tamping rammer with Engine HCD80 Tamping rammer with electric engine
Engine ModelGX160 Engine220V Electric engine
Power of engine5.5Hp2.2KW
Impacting Force10000 N10000 N
Impacting Frequency450~650 Times per min450~650 Times per min
Working Speed10~13 m / min10~13 m / min
Leaping height40~65 mm40~65 mm
Weight88 Kg80 Kg
Plate Size300mm × 330mm300mm× 310mm
Packing Size610mm × 520mm × 970mm630mm× 540mm× 970mm

Model			HCR80K Tamping rammer with Honda/Lifan/Robin Engine			HCD80 Tamping rammer with electric engine
Engine Model			GX160 Engine			220V Electric engine
power of engine			5.5Hp			2.2KW
Impacting Force			10000 N			10000 N
Impacting Frequency			450~650 Times per min			450~650 Times per min
Working Speed			10~13 m / min			10~13 m / min
Leaping height			40~65 mm			40~65 mm
Weight			88 Kg			80 Kg
Plate Size			300mm × 330mm			300mm×310mm
Packing Size			610mm × 520mm × 970mm			630mm×540mm×970mm
