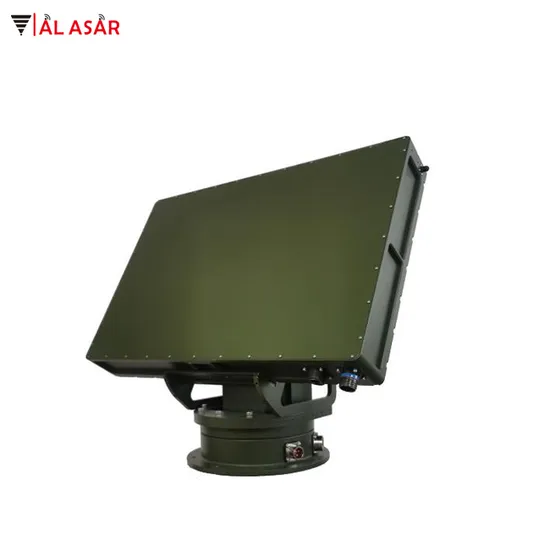

IP66 Waterproof 5km Ku-Band Adjustable Radar Detector

Product Description

Product Introduction The five-kilometer low-altitude surveillance radar can accurately detect and track low-slow and small targets such as UAVs, display and output multi-dimensional information such as distance, azimuth, pitch, speed, altitude, and intensity of the target, forming a three-dimensional movement situation of low-altitude targets .
The five-kilometer low-altitude surveillance radar adopts a one-dimensional phased array system and has the ability to detect a variety of aircraft such as quadrotor UAVs, fixed-wing UAVs, model aircraft, and self-assembled machines. This product has the ability to detect multiple targets and complex urban environments. At the same time, this product can output the target track information to the optoelectronics, command center, etc. through a predetermined interface protocol, providing precise guidance for optoelectronics and strike equipment, and reserves an input interface for remote control and networking construction.
Compared with products of the same type, it has the advantages of high precision, high data rate, high detection probability, low false alarm rate, follow-up gaze, good portability, and rapid deployment.
Product Specificaiton

Item	Performance parameters
Working frequency	Ku-band
frequency adjustable	YES
Transmit signal bandwidth	≤40MHz
System	One-dimensional active phased array
Beam scanning method	Elevation electronic scanning, azimuth mechanical scanning
The average power of the whole machine	< 100W
Turntable horizontal speed	adjustable
Detection power	≥ 5km(RCS=0.01m2)
blind spot	≤ 150m
Azimuth range	360°
Tilt	30°
Speed range	0.8 ~ 80 m/s
Distance accuracy	10m
Azimuth accuracy	0.5°
Tilt accuracy	0.5°
Speed accuracy	0.5m/s
Detection probability	90%
data rate	Search: 6s/3s Tracking: 6Hz
Number of targets detected at the same time	≥100
Multi-target detection capability	have
networking capability	have
track output protocol	UDP
twenty one Waterproof and moisture-proof grade	IP66
