Newspaper Web Aluminum CTP Printing Plate Hole Punching and Bending Machine

Product Description

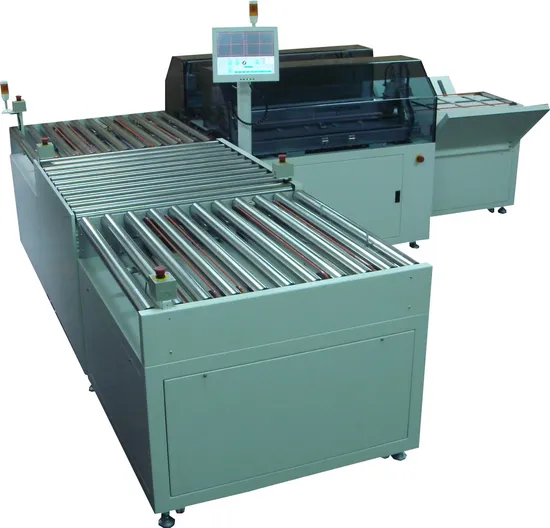

Newspaper Web Aluminum CTP Printing Plate Hole Punching and Bending machine
TY 800AOL
-Suitable for all web offset presses including Commercial Heatset and Newspaper presses - Dual CCD camera system with 40 times magnification of cross mark targets - Full automatic program controlled actions for vision registration, Double Edge pneumatic punching and bending completed in one step - Fully automation with conveying systems for direction connection to CTP/Processor setups - Conveying systems can be customized according to user's layout - High plate processing speed from 180-240 plates per hour - Reduce make ready time and wastage - Reduce machine wear and tear by eliminating cocking mis-register
Technical Specifications:

Model/Specification	RT-600 Automatic Window Patching Machine
Max.Paper size	(L)600×(W)520
Min.Paper size	(W)80×(L)100mm
Max.Window size	(L)400×(W)400
Min.Window size	(W)30×(L)45mm
Paper thickness	cardboard: 200gr/m2~2.000gr/m2 corrugated board: from micro-flute~6mm thickness
Film thickness	0.03-0.2µm
Stickup Accuracy	(left/right)±0.5mm ;(top/bottom)±1mm
Machine size	(L)4500×(W)1500×(H)1700
Net weight	3300kg
Main power required	3kw
Sizing roller power	0.09kw
Delivery stacker power	0.37kw

Top quality components: most of core components are imported from worldwide leading supplier in USA, Japan and Germany • Massive production (600-700 units per year) ensures QC • Most completed portfolio available in the market to offer flexible choice for customers: all formats, all laser technology(thermal and UVCTP(ctcp), both manual and automatic, autoloader, individual laser array and laser Valve • Modula designs and simple structure and easy use and maintenance (compared with Kodak, Agfa and Screen) • Lifetime warranty in conjunction with EcooGraphix plates
