Micro Air Station Environmental Quality Monitoring System C2h6s2 Atmospheric Pressure, Temperature, Humidity, Wind Speed and Wind Direction Air Detector

Product Description

introduce

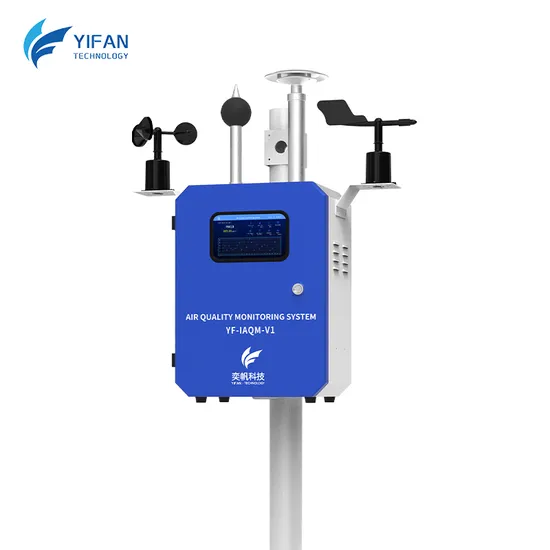

YF-IAQM-V1 is used for continuous monitoring of O3, SO2,CO,NO2,PM2.5,PM10,TVOC,CO2, Temperature, humidity, wind speed, wind direction, atmospheric pressure, noise and other parameters. The sensor is an imported high-precision electrochemical sensor that uses a pump suction sampling method for monitoring. It is equipped with a built-in water and dust removal filter, which can effectively protect the sensor from damage. It is an ideal safety monitoring device for volatile organic compounds in various high-risk areas, which can continuously monitor their concentration and contact sales personnel for more gases.
Product Features
1. Implement high-performance automatic monitoring and anti-interference technology design
2. High precision, reliable performance, suitable for outdoor and industrial environments
3. Implement data parameter collection, automatically upload to the network platform, and automatically publish data
4. Integrated communication technology, real-time monitoring of environmental data, real-time transmission of data, and real-time monitoring of equipment operation status
5. Small size, modular design, flexible layout
6. Integrated temperature compensation technology and long-term automatic calibration technology
7. Adopting a 32-bit high-speed processing core chip
8. Adopting a 7-inch industrial display touch screen
9. Automatic fan heat exhaust device

Power input:	110-220AC	Display screen:	7-inch touch screen
Working power:	35-40W	Working temperature:	-20~60 degrees;
Sensor type:	electrochemical;	Working humidity:	0~98% RH (no condensation)
Sampling method:	pump suction;	Service life:	Sensor (1 year), Instrument (5 years);
Accuracy:	≤± 3% FS;	Product size:	50CM * 35CM * 25CM
Resolution:	0.01mg/m3;	Gas type:	O3, SO2,CO,NO2,PM2.5,PM10,TVOC,CO2, Temperature, humidity, wind speed, wind direction, atmospheric pressure, noise;
Repeatability:	≤± 2% FS;
Zero drift:	≤± 2% FS/6h;
Span drift:	≤± 5% FS/6h;	range	SO2:0-1.000PPM NO2:0-1.000PPM O3:0-1.000PPM CO:0-50.000PPM TVOC:0-20.000PPM CO2:0-5000PPM Temperature: -30~60 degrees Celsius Humidity: 0-100% Wind speed: 0-50.00m/s Wind direction: 0-360 ° Noise: 20-130dB (For more range options, please contact sales personnel)
Response time:	T90 ≤ 3 seconds;
Communication method:	RS485 digital signal (directly uploaded to the Environmental Protection Bureau platform)
Output signal:	485
