Small Size Building Electric Hoist PA Series PA200-PA1000
Basic Info.
Model NO.
JY
Type
Electric Hoist
Sling Type
Wire Rope
Lift Speed
10/5m Per Min
Maximum Lifting Height
12m
Chain Falls
Wire Rope 1
Certification
CE
Condition
New
Color
Red
Weight
30kg
Rope Diameter
6mm
Wire Rope
Galvanized Rope
Voltage
220V
Phase
Single
Power
1600W
Motor
100% Copper
Plugs
EU, UK, Us
Frequency
50/60Hz
Work Rate
S3-25%-10min
Transport Package
Carton Case
Specification
1000 kg
Trademark
GSTOYO
Origin
China
HS Code
8425110000
Production Capacity
1000 PCS Each Month
Product Description
Product Description

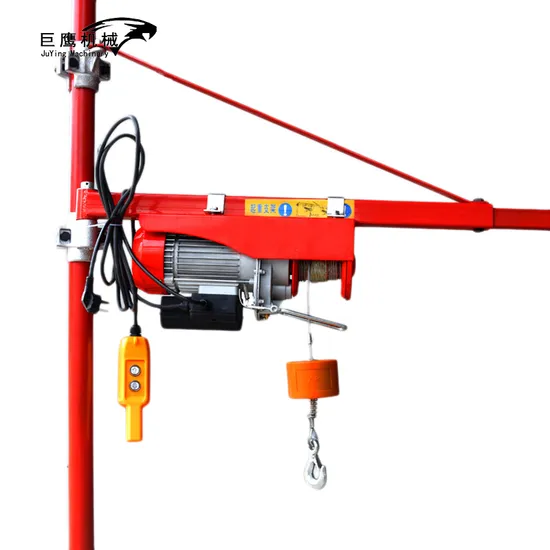

The mini electric hoist is a new electric lifting tool with single-phase electric low voltage.
It gets rid of the restraint of three-phase electricity and has a wider range of applications.
Remote control: with emergency stop button, safe and secure, and it can be equipped with
wireless remote control
Wire rope: The wire rope adopts GB-1102-71 (6*37+1) type lifting wire rope, which is durable
Motor protection rating: IP40
Brake: point magnetic brake system, automatic brake after power off
With the up-limit
Detailed Photos
We have done a new round of updating the motor. 100% pure copper motor, using brand new
170 ºC ultra-high temperatureresistant copper, and using fully automatic machine to produce
the motor. The motor can only leave the factory after threerounds of testing. Any motor will be guaranteed.
The electric hoist is equipped with emergency stop and limit protection.
Care for your safety!
Product Parameters
| Model | Capacity (kg) | Lifting height(m) | Lifting speed(m/min) | Voltage(v) | Power (Kw) | Packing Size(cm) | PCS/Case | N.W. (kg) |
| PA200 | 100/200 | 12/6m | 10/5m/min | 220/230 | 0.51 | 39*30*26 | 2 | 22 |
| PA300 | 150/300 | 12/6m | 10/5/min | 220/230 | 0.60 | 39*30*26 | 2 | 22 |
| PA400 | 200/400 | 12/6m | 10/5m/min | 220/230 | 0.98 | 44*33*27 | 2 | 33 |
| PA600 | 300/600 | 12/6m | 10/5m/min | 220/230 | 1.2 | 44*33*27 | 2 | 35 |
| PA800 | 400/800 | 12/6m | 10/5m/min | 220/230 | 1.3 | 44*33*27 | 2 | 37 |
| PA1000 | 500/1000 | 12/6m | 8/4m/min | 220/230 | 1.6 | 56*25*32 | 1 | 30 |
FAQ
| 1. On line in 24 hours 2. CE Certificate 3. OEM Product and Packing 4. Prompt Delivery 5. The necessary documents of clearing 6. Supply the reparing parts 7. The technical suggestion of install and application |
Company Profile
Hebei Juying Hoisting Machiney Co.,Ltd was founded in 2005, and mainly produce chain hoist, electric hoist, mini electric hoist, hoist, lifting chain, lifting sling, lifting machinery equipment. The company has a complete and scientific quality management system. Relately it has been vertified by TÜV Rheinland.
