Stencil Screen Printer 2023 New Style Semi-Auto SMT Stencil Printer Factory Solder Paste Printing Machine

Product Description

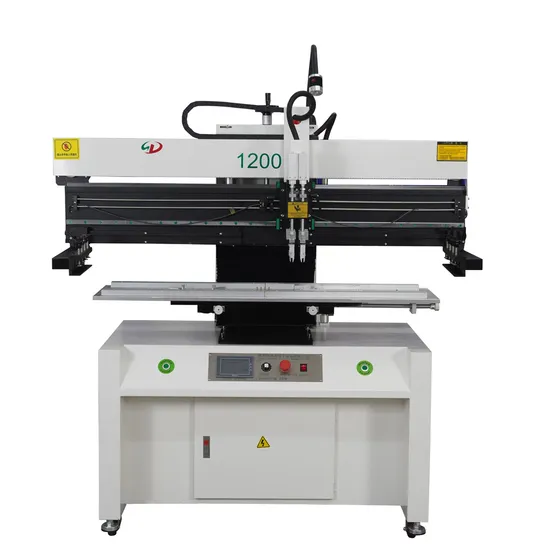

Product introducion 1200 Semi-automatic Printing Machine Features:
1.Microcomputer control, touch screen display, menu operation interface;
2. Floating blade.(similar to the automatic MPM printing machine, the scraper can float up and down freely and automatically adjust the level with the stencil);
3. The pressure of the scraper can be adjusted (the pressure of the scraper on the steel mesh can be adjusted according to the length of the scraper of different types);
4. Equipped with frequency converter speed control system, the blade running speed is stable;
5. The work operation is operated by two-hand button switch, which is safe and reliable;
6. The touch screen menu can independently set the pause time of the steel mesh as a whole;
7. The positioning and fixing methods of the PCB board include reference hole positioning, reference edge positioning and reference hole reference edge simultaneous positioning, template positioning and other different precise positioning forms;
8.The time display function in the touch screen, the automatic counting function of printing times, and the screen protection function;
9. It has adjustable blade speed and emergency stop safety function;
10. Printing mode: single, double, secondary (optional menu setting);
11. Printing working status: automatic / semi-automatic / jog three printing status (menu setting optional);
12. Large cast-iron bench works smoothly without shaking.
Technical Parameters:

Model	1200
Direction of movement	Move left and right
Workbench	1250*320mm
Power Supply	Single phase 220V
Dimension	1680*780*1650mm
Air Supply	0.5-0.8mpa
Starting Power	0.2KW
Weight	About 250KG
Steel mesh clamping device	Manual locking
Printing Range	1200*320mm
Moving Motor	Three-phase motor 60W
Moving Speed	0-2200mm/min
Rail	Taiwan silver linear guide
PLC Control	Siemens
Touch Screen	4.3# display control screen
Main Cylinder	SC80*150
Cutter Head Cylinder	CDU25-50
Frequency Converter	ENC
Floodlight	LED light

Product Description
Maintenance and repair:
(1) High temperature
The machine is easy to malfunction in the high temperature environmentthus affects the production. Manufacturers do not know the cause of thecase that is mechanical damage, only normal use, attention tomaintenance and micro-repair, these mechanical failure control.
(2) Voltage problem
After-sales service manufacturers often encounter customer response tomechanical failure, such as mechanical heating can not work, unable torotate control display instability. The causes of the above failures, inaddition to a few poor quality, most of the voltage is not enough, capacityis not enough, line aging and lead to imbalance between circuits. If it isnot repaired in time, the machine will burn out.
(3) Professional maintenance
Equipment professional electrical maintenance personnel, regularmaintenance and repair of machinery. Can also be under the guidancof manufacturers to do a good job in the daily maintenance and regulamaintenance of machinery.
FAQ
FAQ:
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
