Hot Sale Tdyz-500 Disc Fertilizer Disk Automatic Granulator Pelletizer Animal Feed Pellet Machine

Product Description

Hot Sale TDYZ-500 Disc Fertilizer Disk Automatic Granulator Pelletizer Animal Feed Pellet Machine
Product introduction

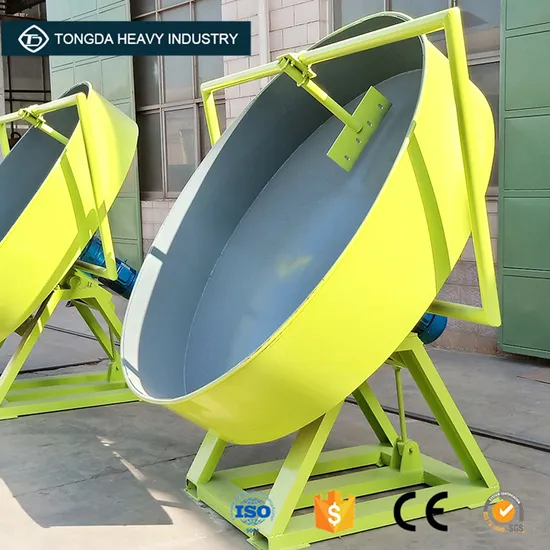

Disc granulator (also known as the ball plate) adopts the whole circular arc structure, and the granulating rate can reach more than 93%. It has three discharging ports, which is convenient for discontinuous production, greatly reducing the labor intensity and improving the labor efficiency. The reducer and motor use flexible belt drive to start smoothly, slow down the impact force and improve the service life of the equipment. The plate bottom is strengthened by a plurality of radiant steel plates, which is durable and never deformed. It is an ideal equipment for organic fertilizer and compound fertilizer, which is designed with thick, heavy and strong base, so it has no fixed anchor bolts and smooth operation.
Performance characteristics
1.High efficiency.The circular granulation machine adopts the whole circular arc structure, the granulation rate can reach more than 93%.
2.Long service life.
3.The bottom of granulation plate is strengthened by a number of radiation steel plates, which are durable and never deformed.
4.Granulator plate lined with high strength glass steel, anti-corrosion and durable.
5.The raw materials have wide applicability. It can be used for the granulation of various raw material, like compound fertilizer, medicine, chemical industry, feed, coal, metallurgy.
6.Reliable operation and low cost. The machine's power is small, and operation is reliable; it has no three waste discharge, the operation is stable, and the maintenance is convenient.
Working principle
The raw material powder is evenly stirred by pre-adding water, and input into the dish. As the dish rotates, the material gradually forms into a ball in the body of the dish by rolling, and reaches the predetermined diameter before being out of the dish, and then transported to the next process.

Model	Diameter of Disc(mm)	Edge Height (mm)	Rotary Speed(r/min)	Motor Power(kw)	Capacity(t/h)	Model of Reducer(kw)	Dimensions(mm)
TDYZ-500	500	200	32	0.55	0.02-0.05	BWYO-43-0.55	650*600*800
TDYZ-600	600	280	33.5	0.75	0.05-0.1	BWYO-43-0.55	800*700*950
TDYZ-800	800	200	21	1.5	0.1-0.2	XWD4-71-1.5	900*1000*1100
TDYZ-1000	1000	250	21	1.5	0.2-0.3	XWD4-71-1.5	1200*950*1300
TDYZ-1200	1200	250	21	1.5	0.3-0.5	XWD4-71-1.5	1200*1470*1700
TDYZ-1500	1500	300	21	3	0.5-0.8	XWD5-71-3	1760*1500*1950
TDYZ-1800	1800	300	21	3	0.8-1.2	XWD5-71-3	2060*1700*2130
TDYZ-2000	2000	350	21	4	1.2-1.5	XWD5-71-4	2260*1650*2250
TDYZ-2500	2500	450	14	7.5	1.5-2.0	ZQ350	2900*2000*2750
TDYZ-2800	2800	450	14	11	2-3	ZQ350	3200*2200*3000
TDYZ-3000	3000	450	14	11	2-4	ZQ350	3400*2400*3100
TDYZ-3600	3600	450	13	18.5	4-6	ZQ400	4100*2900*3800
